MA-PVA

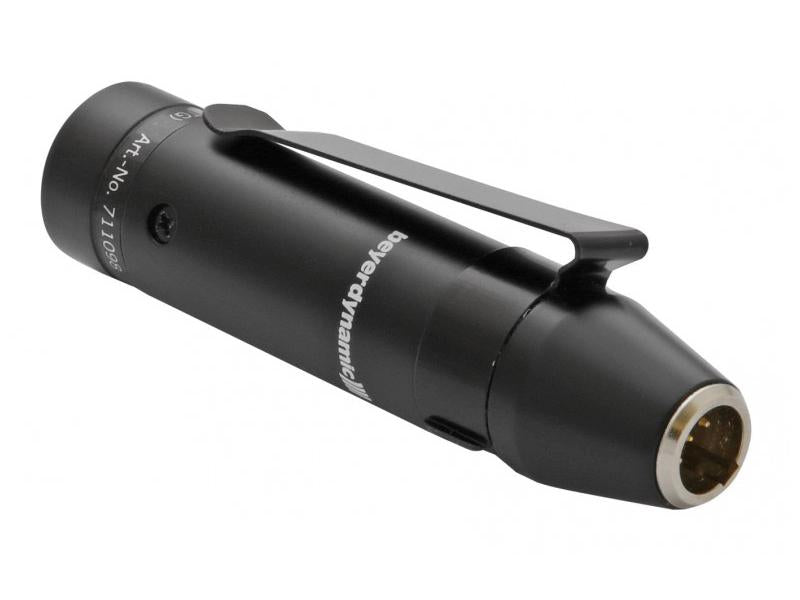

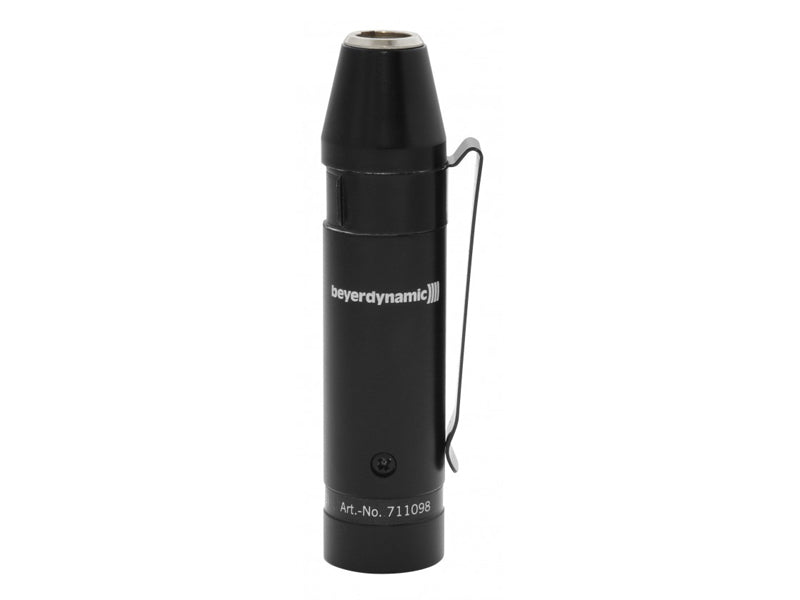

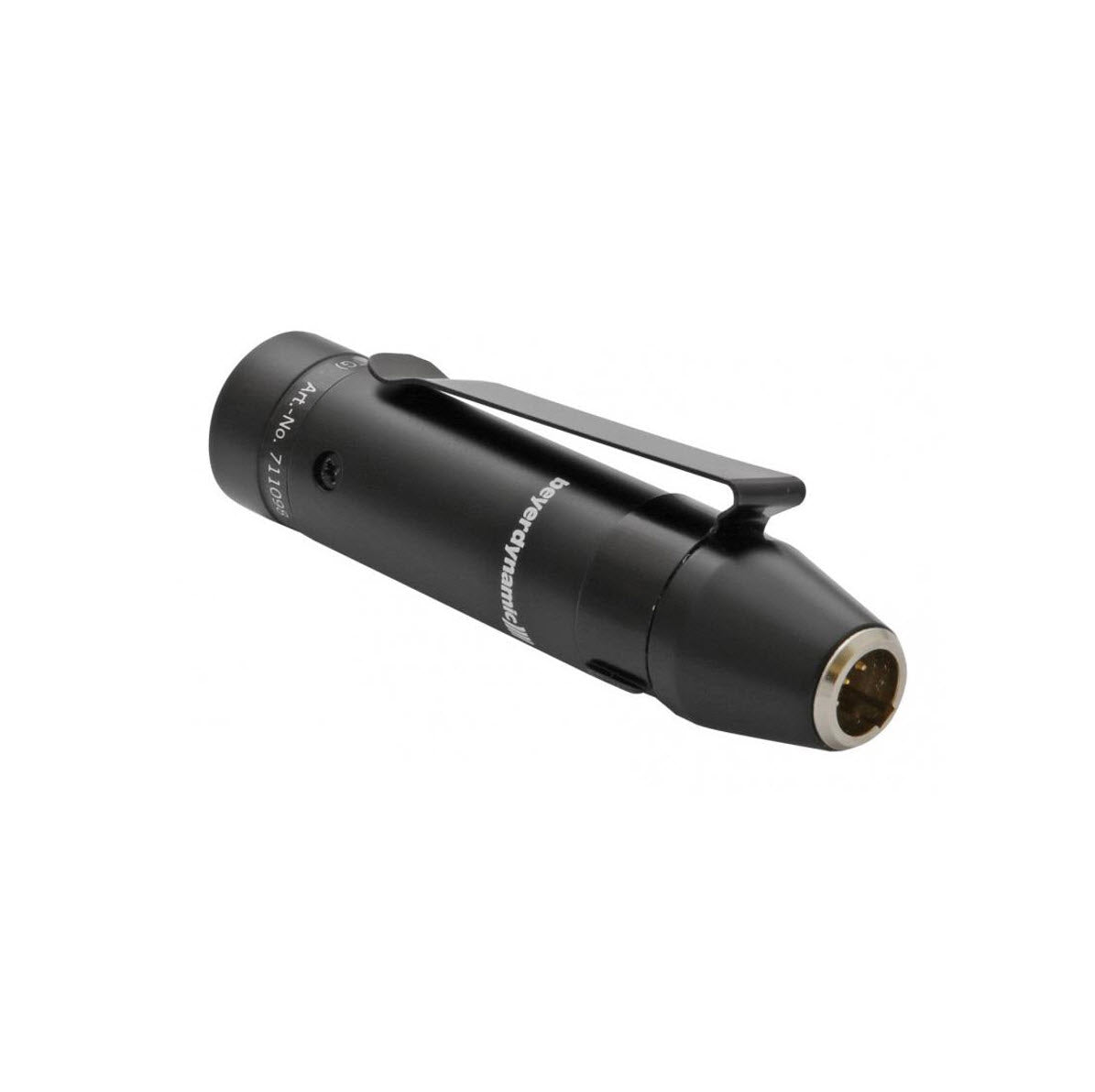

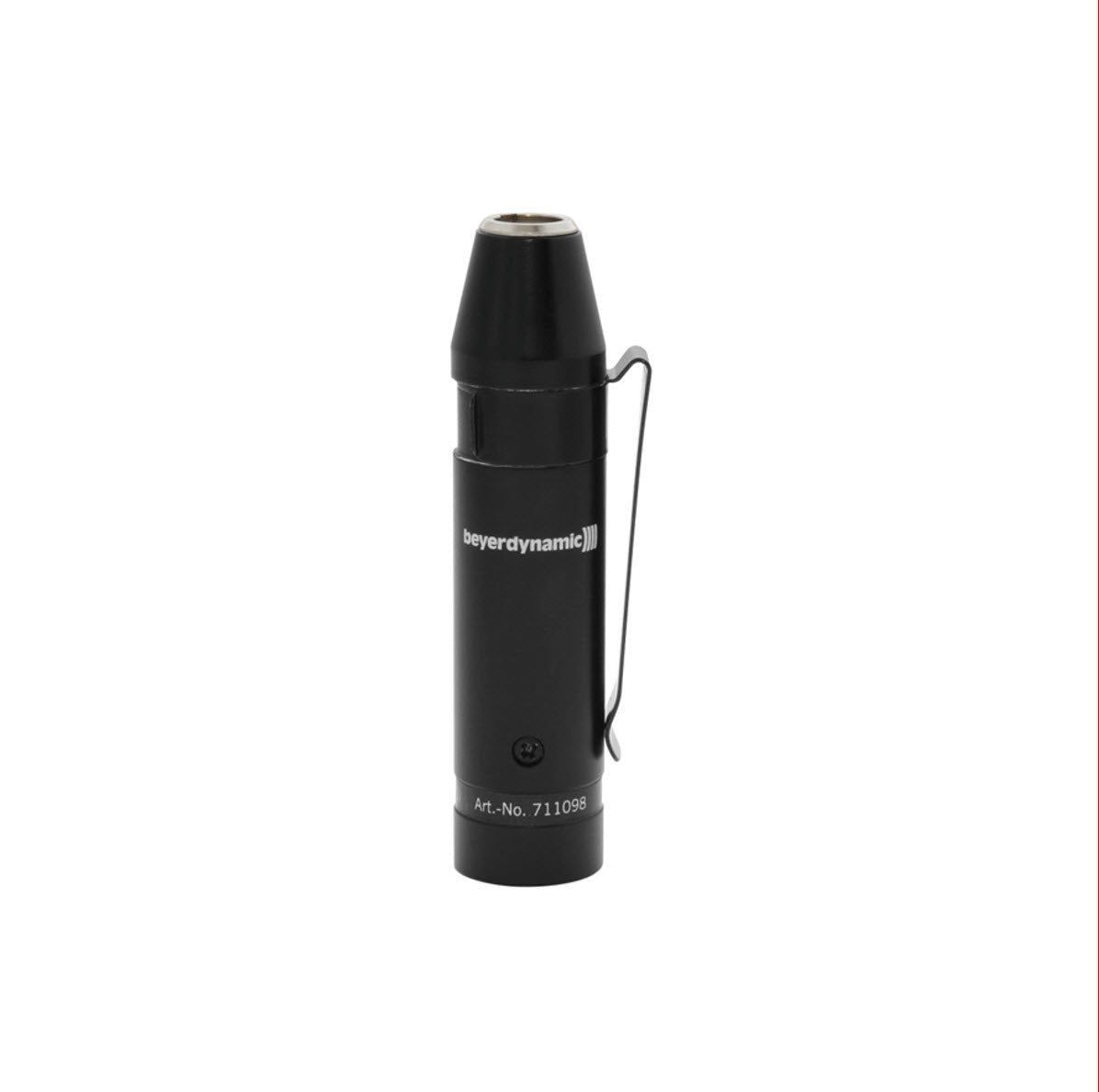

The MA-PVA power adapter is used for powering the beyerdynamic condenser microphones such as headset, lavaliere or instrument
microphones with mini XLR connection and TG pin assignment.

It converts the phantom power coming from a balanced microphone input (pre-amplifier, mixing console etc.) into AB powering which is required by electet capsules.
Due to its belt clip the MA-PVA can be attached to a belt or clothing

Features:
4-pin mini XLR male (input)
3-pin XLR male (output)
Belt clip

Specifications:

Frequency response . . . . . . . . . . . . . 20 - 20,000 Hz
Noise voltage . . . . . . . . . . . . . . . . . . 4.4 μV [CCIR, Q-Peak]; 0.9 μV [A, RMS]
Power supply . . . . . . . . . . . . . . . . . . 11 - 52 V phantom power: P12-P48, P12L, SP48
Output voltage. . . . . . . . . . . . . . . . . 5.1 V
Power consumption . . . . . . . . . . . . . approx. 2.7 mA
Output impedance . . . . . . . . . . . . . . 200 ohm
Nominal load impedance . . . . . . . . . > 1 k ohm
Output connector. . . . . . . . . . . . . . . 3-pin XLR, male
Input connector . . . . . . . . . . . . . . . . 4-pin mini XLR, male
Pin assignment . . . . . . . . . . . . . . . . . TG pin assignment
Dimensions
Length . . . . . . . . . . . . . . . . . . . . . . . 82 mm
Diameter . . . . . . . . . . . . . . . . . . . . . 19 mm without clip
Weight . . . . . . . . . . . . . . . . . . . . . . . 53 g
