TG I53c

Inconspicuously small, but incredibly robust!

The very wide frequency response of the TG I 53 opens up a variety of possible applications.

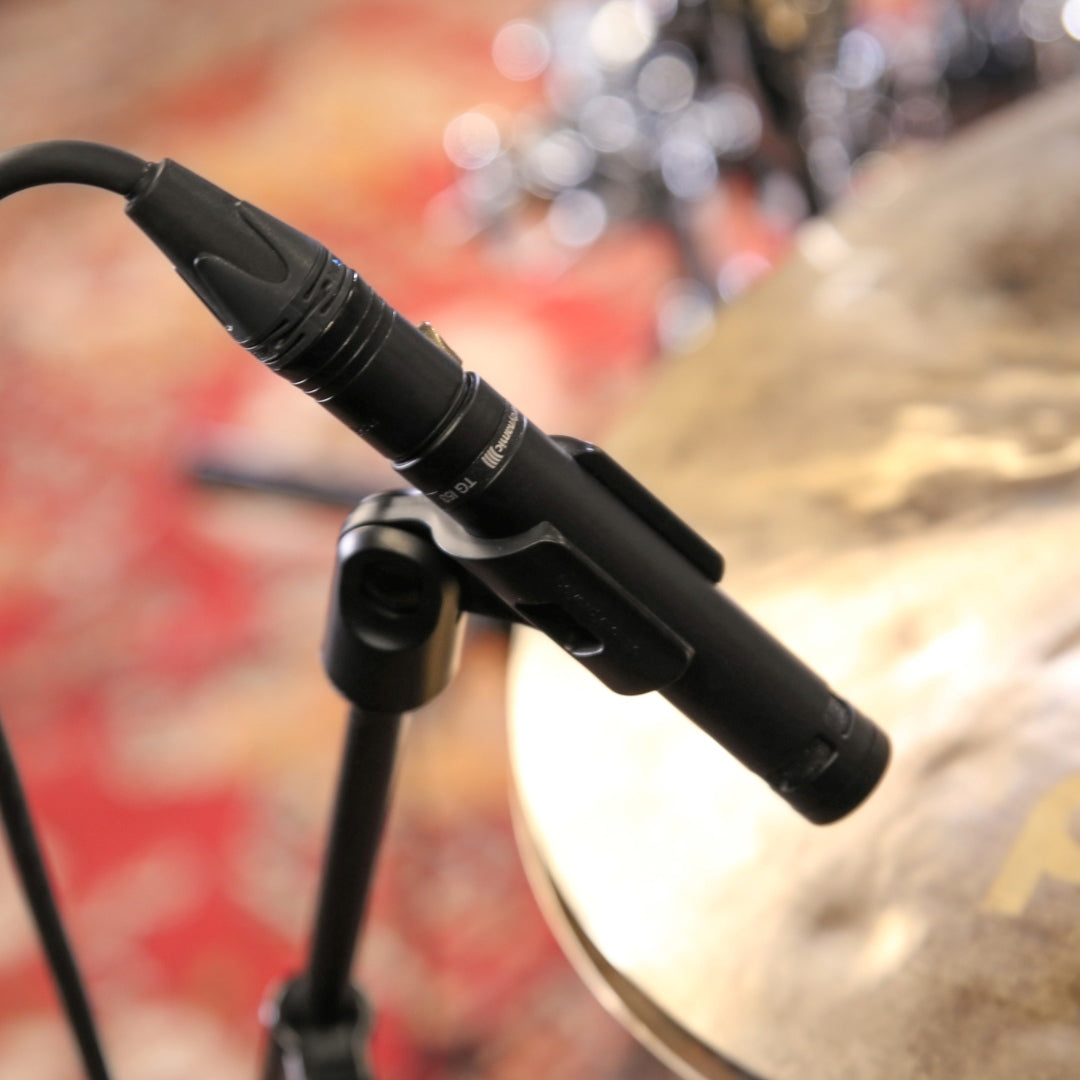

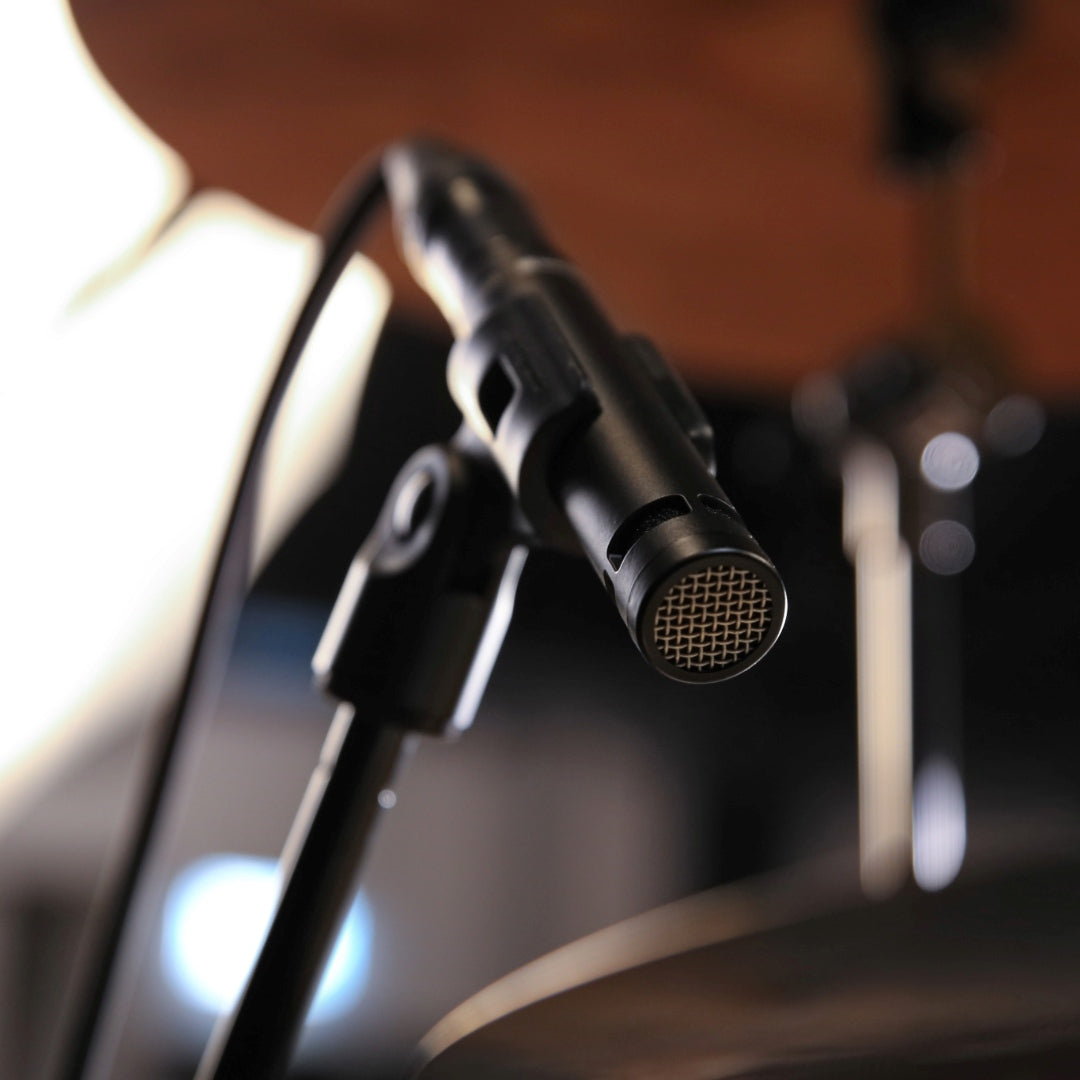

From hi-hats and overheads to percussion, string and brass instruments and even choir singing ‚ this condenser microphone with its subtle treble boost and excellent detail reproduction really excels.

Because of its high sensitivity, it is also suitable for longer microphone placement distances, for example for large sound sources with complex radiation patterns. Further advantages: it is both light and rugged due to the carbon fibre reinforced housing.

Its soft treble boost enables the condenser microphone to excel, particularly when it's used with an acoustic guitar.

Features:

Cardioid polar pattern
High SPL capability
Casing strengthened with carbon-fibre
Rugged construction

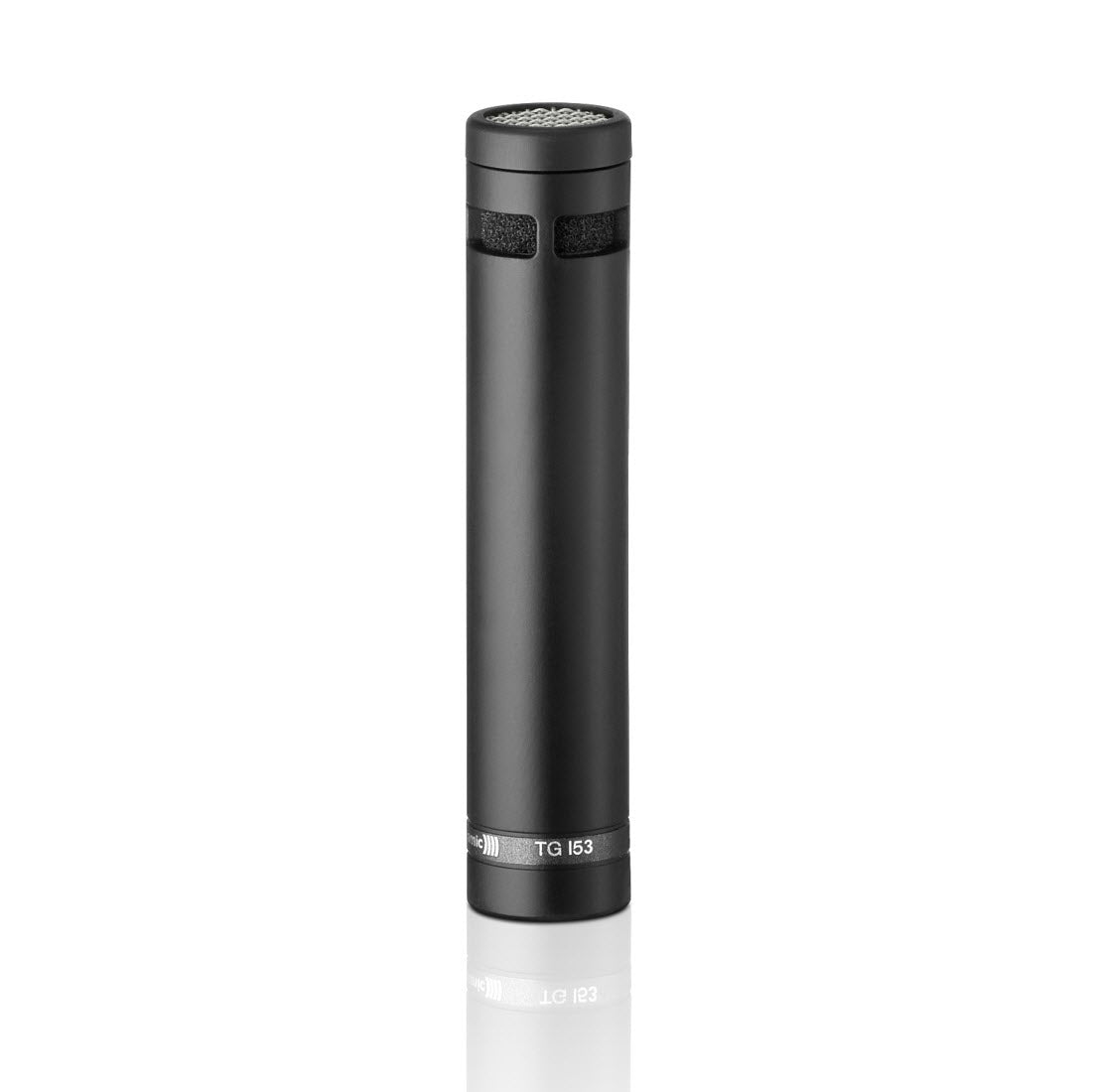

Slim design

Specifications:

Transducer type . . . . . . . . . . . . . . . . Condenser (back electret)
Operating principle. . . . . . . . . . . . . . Pressure gradient
Polar pattern . . . . . . . . . . . . . . . . . . Cardioid
Frequency response
Close miking . . . . . . . . . . . . . . . . . . 20 - 20,000 Hz
Distant miking (measured at 1 m). . . 35 - 20,000 Hz
Open circuit voltage . . . . . . . . . . . . . 6.8 mV/Pa (-43.4 dBV) ±2.5 dB
Nominal impedance . . . . . . . . . . . . . 200 ohm
Load impedance. . . . . . . . . . . . . . . . ‚1 k ohm
Max. SPL at 24 V and 48 V phantom power . . 140 dB
S/N ratio. . . . . . . Equivalent SPL . . 23 dB [A; RMS] 33 dB [CCIR; Q-Peak]
Power supply
Phantom power: . . . . . . . . . . . . . 12 - 48 V (recommended: 48 V)
Power consumption . . . . . . . . . . . . . 4.7 mA
Connection . . . . . . . . . . . . . . . . . . . 3-pin XLR, male
Dimensions . . . . . . . . . . . . . . . . . . . 100 x 19.5 mm
Weight (without clamp) . . . . . . . . . . 36 g
