TG D58c

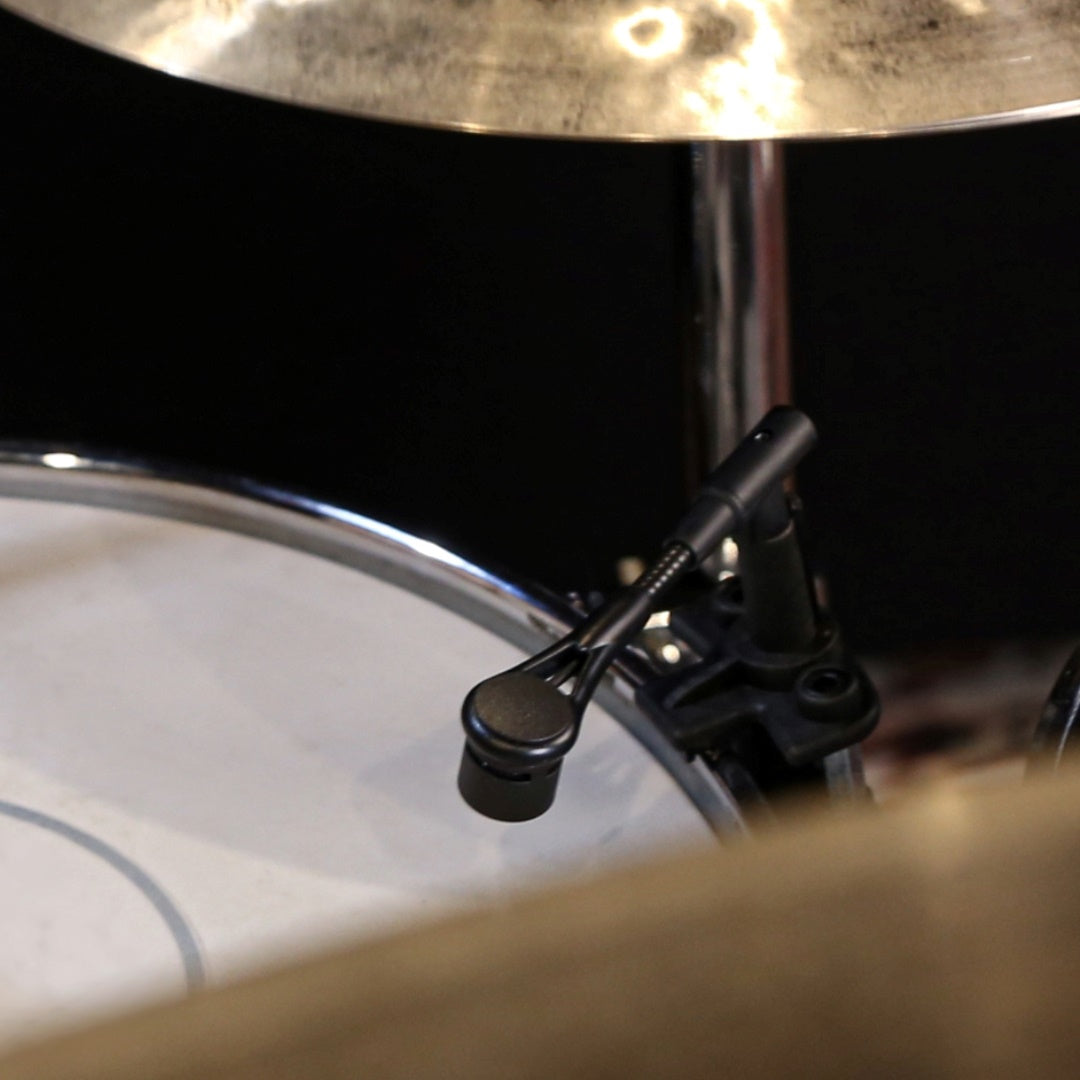

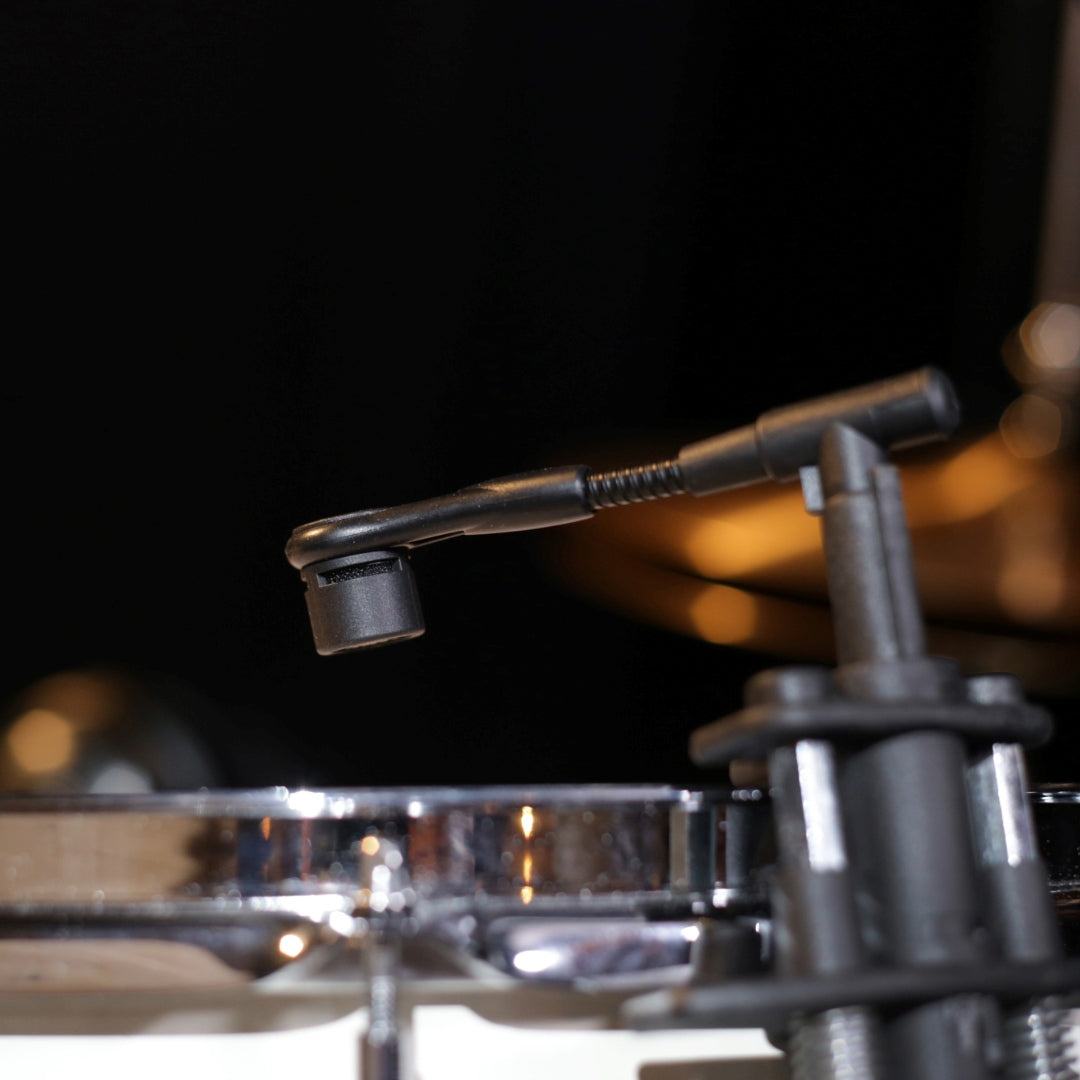

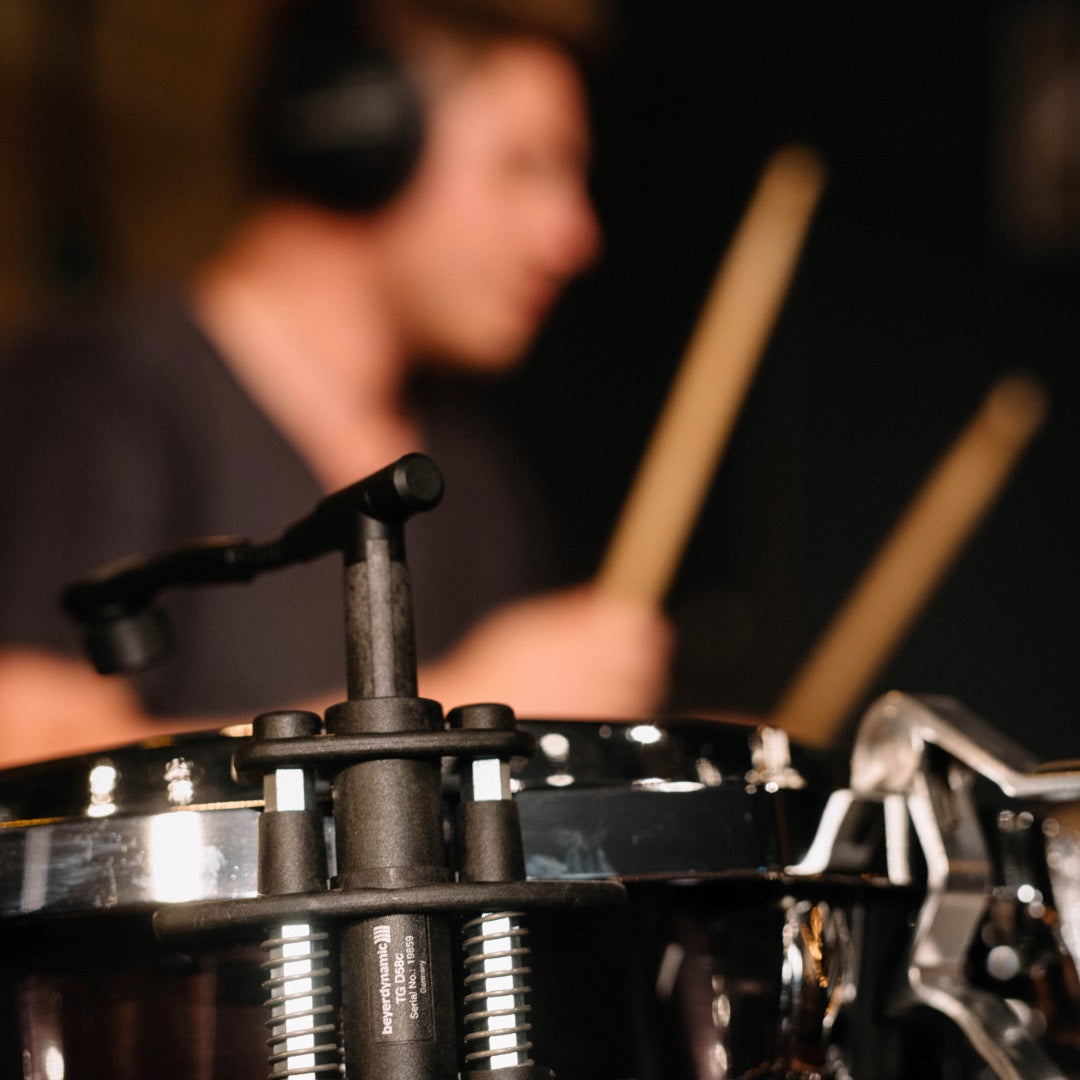

The practical advantages of the patented microphone clamp on the TG D58c condenser microphone are immediately apparent whether when using with rack toms, snare drums or percussion instruments: the microphone can be mounted and positioned quickly and securely.

The balanced frequency response also makes it immediately ready for use. Pre-amplifiers are a thing of the past due to the integrated pre-amplifiers with downward-facing standard XLR connections. Its ability to operate at high levels compared to the previous model Opus 88 should also be mentioned, as is the newly designed, low-resonance housing, the elastic capsule suspension, the improved signal-to-noise ratio and technical values that remain valid even with phantom powering below 44 volts.

Features:

Short, flexible gooseneck with horizontal swivel joint for optimum positioning Rugged construction with rubber shock-mounted microphone capsule
Patented microphone clamp with integrated pre-amp and XLR connection
No disturbing cable between microphone head and pre-amp
Cardioid polar pattern for high-gain-before feedback
Wide transmission range
Phantom powering 11 - 52 V

Specifications:

Transducer type . . . . . . . . . . . . . . . . Condenser (back electret)
Operating principle. . . . . . . . . . . . . . Pressure gradient
Polar pattern . . . . . . . . . . . . . . . . . . Cardioid
Frequency response Close miking . . . . . . . . . . . . . . . . . . 20 - 20,000 Hz
Distant miking (measured at 1 m). . . 35 - 20,000 Hz
Open circuit voltage . . . . . . . . . . . . . 5 mV/Pa (-46 dBV) ±2.5 dB
Nominal impedance . . . . . . . . . . . . . 200 Ω
Load impedance. . . . . . . . . . . . . . . . ≥ 1 kΩ
Max. SPL at 24 V and 48 V phantom power . . 140 dB
S/N ratio. . . . . . . . . . . . . . . . . . . . . . 59 dB [CCIR; Q-Peak] 70 dB [A; RMS]
Equivalent SPL . . . . . . . . . . . . . . . . . 35 dB [CCIR; Q-Peak] 24 dB [A; RMS]
Power supply . . . . . .. . . . . . . . . Phantom power: 12 - 48 V (recommended: 48 V) Power consumption . . . . . . . . . . . . . 4.7 mA
Connection . . . . . . . . . . . . . . . . . . . 3-pin XLR, male
Dimensions Clamp (W x H) . . . . . . . . . . . . . . . . . 85 x 118 mm
Gooseneck length . . . . . . . . . . . . . . 20 mm
Weight. . . . . . . . . . . . . . . . . . . . . . . approx. 140 g
