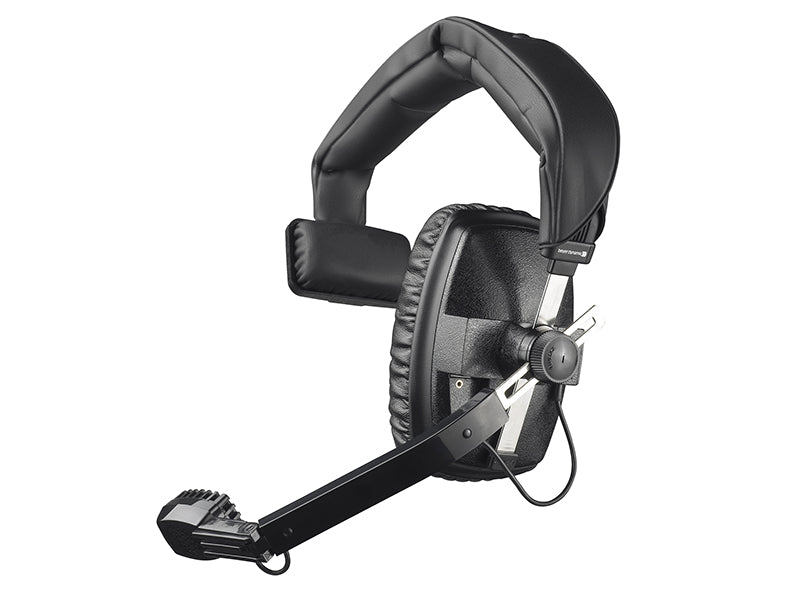

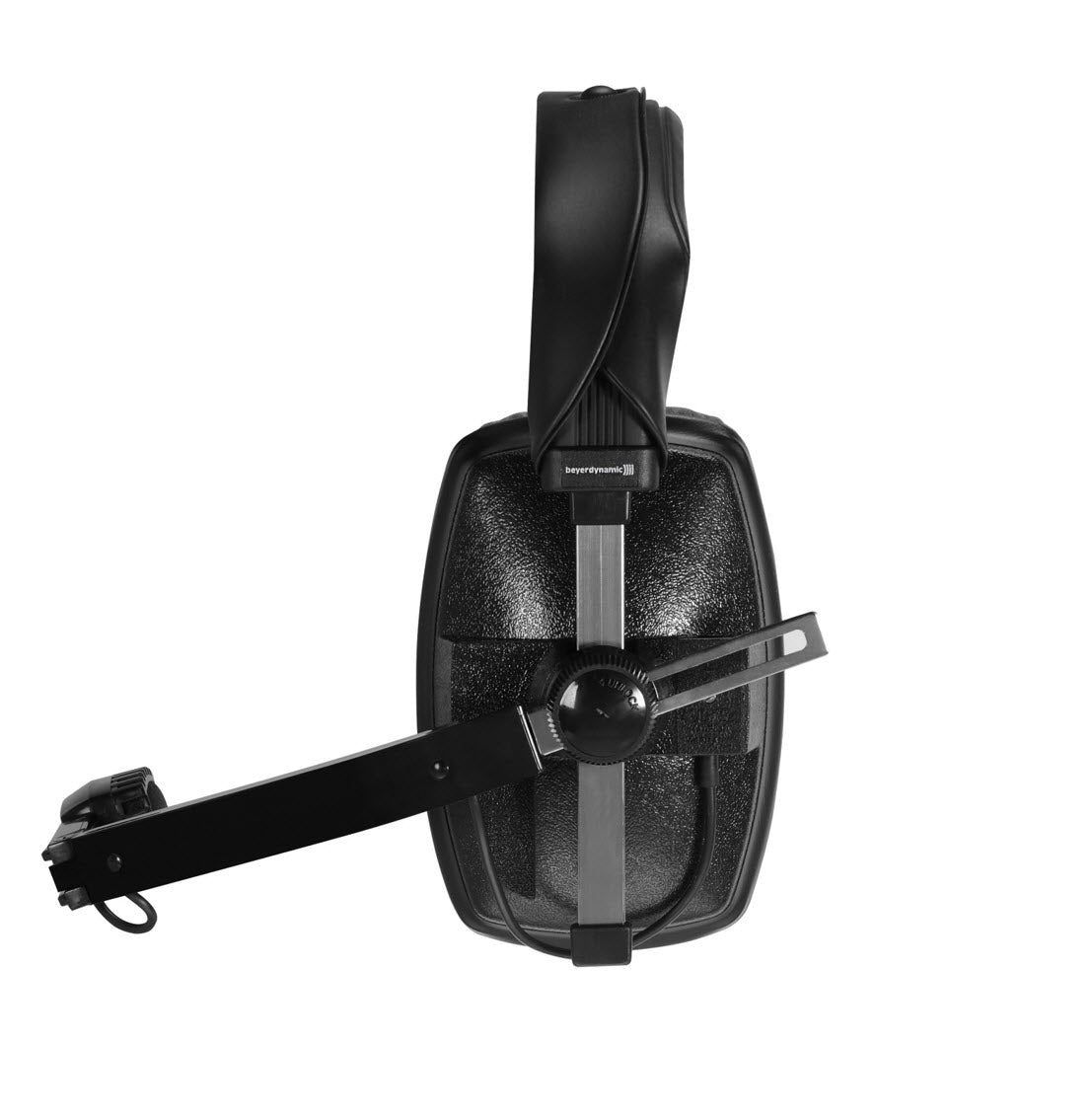

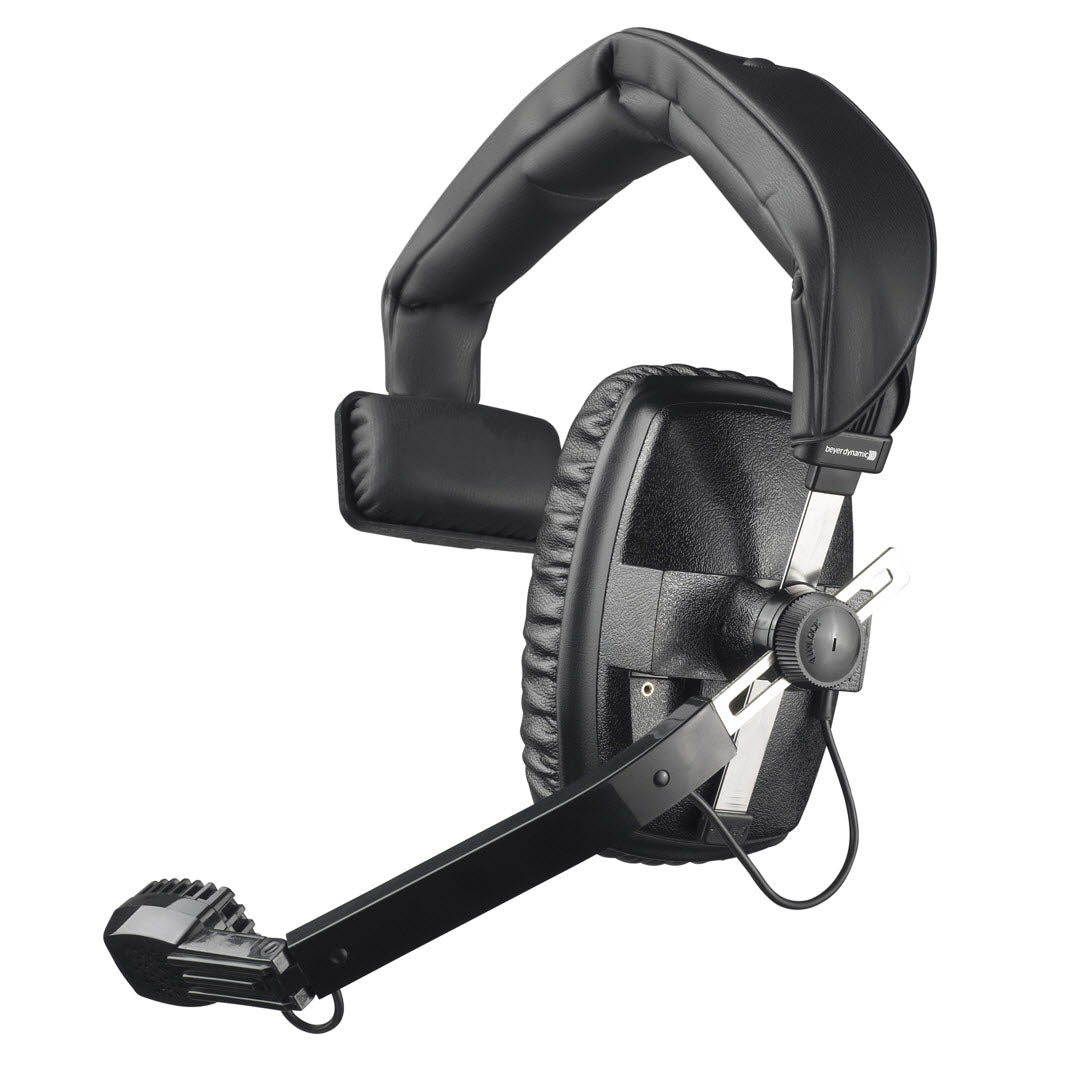

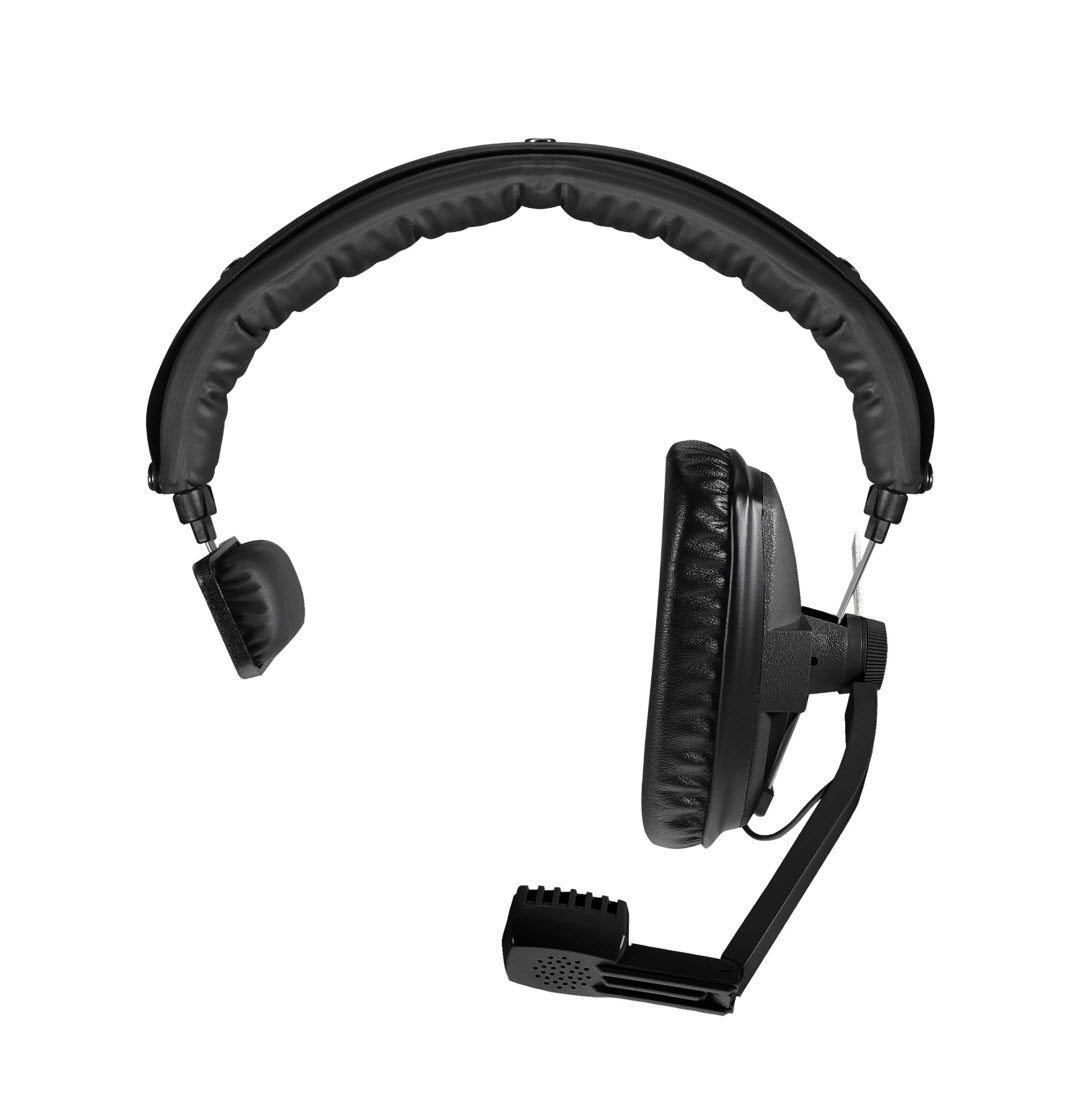

DT 108 Single-ear Professional Headset 200/50 Ohm (Black)

NOTE: This professional headset is not supplied with a cable. The required cable for this headset to work correctly is dependent on its interfacing product and specifications. For a list of cable options download the specifications sheet PDF on this page.

The DT 108 200/50 Ohm single-muff headset is designed for live, remote broadcasting, for studio, film and TV-applications. One side is open to monitor ambient sound. The protective ear cup attenuates up to 20 dB of ambient noise. The headset features a noise cancelling microphone. Available in different impedances.

Features

Highly sensitive headphone and microphone transducers
Excellent ambient noise attenuation
Capable of handling very high SPL
Rugged construction
Excellent comfort for long-term wearing
Modular construction for easy servicing

Specifications:

Headphone
Headphone Transducer type: . . . . . . . . Dynamic
Operating principle: . . . . . . . . . . . . . . .Closed
Frequency response: . . . . . . . . . . 30 - 20,000 Hz
Nominal impedance: . . . . . . . . . . .50 Ohm +- 10% per cartridge*
Nominal SPL at 1 kHz: . . . . . . . . . . . 94 dB
T.H.D.: . . . . . . . . . . . . . . . . . . . . . . < 1%
Power handling capacity: . . . . . . .1000 mW 124 dB
Ambient noise attenuation: . . . . . . . . .approx. 20 dBA
Sound coupling to the ear: . . . . . . . . Circumaural
Headband pressure: . . . . . . . . . . . . . .approx. 4.5 N
Weight (without cable): . . . . . . . . .283 g

Microphone

Transducer type: . . . . . . . . . . . . . . . .Dynamic
Operating principle: . . . . . . . . . . . . .Pressure gradient
Frequency response: . . . . . . . . . . . . 40 -12,000 Hz
Polar pattern: . . . . . . . . . . . . . . . . . . Hypercardioid
Output voltage: . . . . . . . . . . . . . . . approx. 2.5 mV at a distance of 5 cm
Nominal impedance: . . . . . . . . . . .200 Ohm
Load impedance: . . . . . . . . . . . . . . . >= 1000 Ohm
