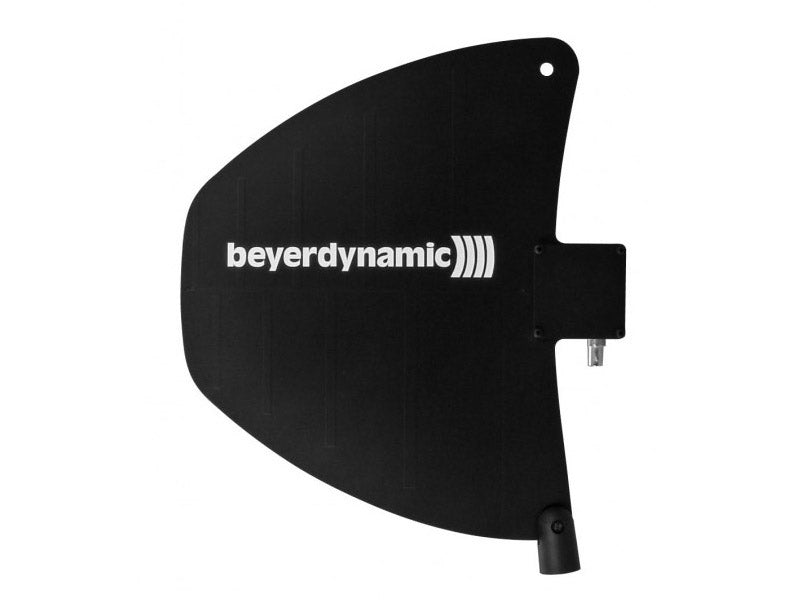

WA-ATDA Passive / Active Antenna. UHF range 470 and 790 MHz.
SKU: BD711004
Description
- Frequency range 470-1000 MHz
- integrated switchable amplifier (passive, Low Gain, High Gain)
- Dust and splash water protected (IP53)
- for all wireless Systems with BNC and TNC
Specifications:
Frequency range: . . . . . . . . . . . . . . . . . . . .470 - 1,000 MHz
Overload Intercept Point
3rd order (OIP3): . . . . . . . . . . . . . . . . . . . .26 dBm
Antenna gain: . . . . . . . . . . . . . . . . .5 dBi
Selectable gain in 3 stages: 0 dB (passive), +6 dB, +12 dB
Power consumption: . . . . . . . . . . . . . . . . . . . . . .8-9 V DC, 75 mA
Wave impedance: . . . . . . . . . . . . . . . . . . . . . .50 ohm
Polar pattern / beam width: beam width: . . . . . . . . . . . . . . .120deg (-10 dB) vertical
Operating temperature: . . . . . . . . . . . . . . . . . . . . . .0C to +45C [32F to 113F]
RF connector: . . . . . . . . . . . . . . . . . . . . . . . . . . BNC socket
Overall dimensions (H x W x D): . . . . . . . . . . . . . . . . . . . . . . .332 x 270 x 25 mm [13.07" x 10.63" x 0.98"]
Weight: . . . . . . . . . . . . . . . . . . . . . 270 g [9.5 oz.]
IP protection class: . . . . . . . . . . . . . . . . . . . . .IP53
