TG I53c - Stereo Set

BEYERDYNAMIC Article no: 708445

Price:
$449

Description

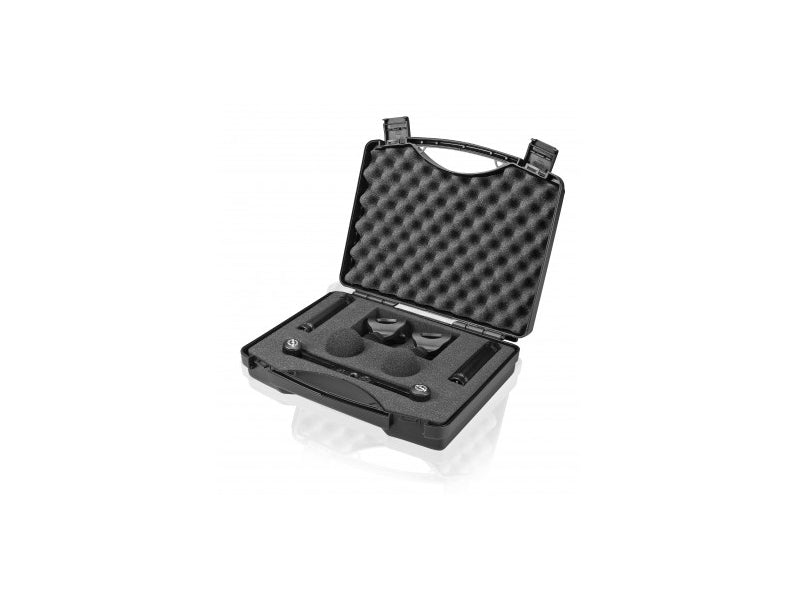

TG I53 C Stereo Set

The very wide frequency response of the TG I 53 opens up a variety of possible applications.

From hi-hats and overheads to percussion, string and brass instruments and even choir singing ‚ this condenser microphone with its subtle treble boost and excellent detail reproduction really excels. Because of its high sensitivity, it is also suitable for longer microphone placement distances, for example for large sound sources with complex radiation patterns.¬† Further advantages: it is both light and rugged due to the carbon fibre reinforced housing.

Features:

Cardioid polar pattern
High SPL capability
Casing strengthenend with carbon fibres
Rugged construction
Slim design

Specifications:

Transducer type . . . . . . . . . . . . . . . . Condenser (back electret)
Operating principle. . . . . . . . . . . . . . Pressure gradient
Polar pattern . . . . . . . . . . . . . . . . . . Cardioid
Frequency response
Close miking . . . . . . . . . . . . . . . . . . 20 - 20,000 Hz
Distant miking (measured at 1 m). . . 35 - 20,000 Hz
Open circuit voltage . . . . . . . . . . . . . 6.8 mV/Pa (-43.4 dBV) ±2.5 dB
Nominal impedance . . . . . . . . . . . . . 200 ohm
Load impedance. . . . . . . . . . . . . . . . ‚1 k ohm
Max. SPL at 24 V and 48 V phantom power . . 140 dB S/N ratio. . . . . . . . Equivalent
SPL . . . . . . . . . . . . . . . . . 23 dB [A; RMS] 33 dB [CCIR; Q-Peak]
Power supply
Phantom power: . . . . . . . . . . . . . 12 - 48 V (recommended: 48 V)
Power consumption . . . . . . . . . . . . . 4.7 mA
Connection . . . . . . . . . . . . . . . . . . . 3-pin XLR, male
Dimensions . . . . . . . . . . . . . . . . . . . 100 x 19.5 mm
Weight (without clamp) . . . . . . . . . . 36 g
