TG H74c tan (TG)

beyerdynamic Article no: 708372

Price:
$593

Description

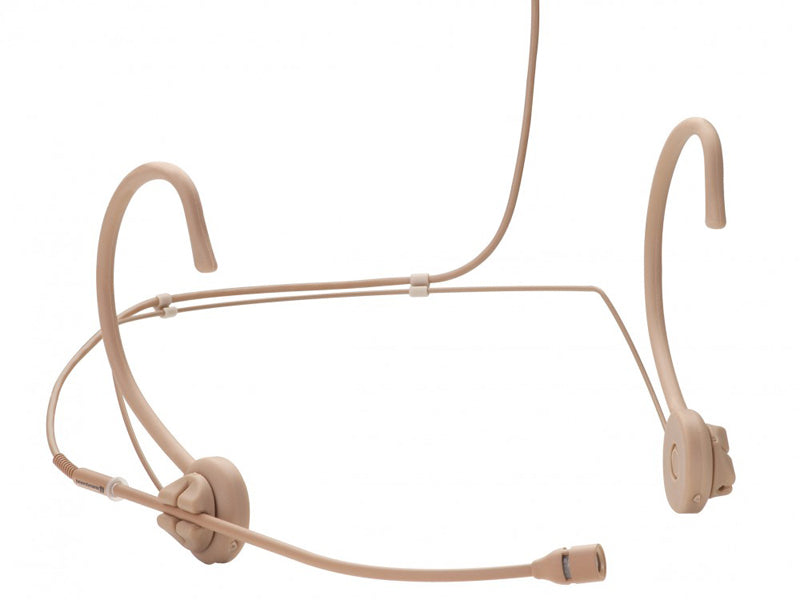

The TG H74, designed for wireless operation, offers plenty of freedom of movement.

With a supercardioid polar pattern and compensated proximity effect, it is particularly suited for musical and theatre applications. Highly adjustable, exceptionally discreet, mountable on both sides and impressively small and rugged – what else could you want from a headset microphone? For wired operation at a phantom powering input, the optional MA-PVA is necessary.

Features:

Supercardioid polar pattern
High gain-before-feedback
Rotatable and slidable microphone boom for optimal positioning
Unobtrusive metal microphone arm
Compensated close-miking effect
High wearing comfort

TG Pin Out:
The TG H74 is compatible with all TG 1000 Beltpack Transmitters that use the TG Pin Out (grey ON/OFF switch). This allows the combination with every system using the TG Pin Out and therefore offers maximum flexibility.

Specifications:

Transducer type . . . . . . . . . . . . . . . . Condenser (back electret)
Operating principle . . . . . . . . . . . . . Pressure gradient
Polar pattern . . . . . . . . . . . . . . . . . . Supercardioid
Frequency response
Close miking . . . . . . . . . . . . . . . . . 40 – 20,000 Hz
Distant miking (measured at 1 m) . . . . . . . . . . . . . 160 – 17,000 Hz
Open circuit voltage . . . . . . . . . . . . . 3.2 mV/Pa (-49.9 dBV)* ±3 dB
Nominal impedance . . . . . . . . . . . . . approx. 650 Ω
Load impedance. . . . . . . . . . . . . . . . > 3.5 kΩ
Max. SPL at 1 kHz . . . . . . . . . . . . . . 144 dB*
Equivalent SPL . . . . . . . . . . . . . . . . . 37 dB SPL*
Power supply . . . . . . . . . . . . . . . . . . Direct current 1.5 - 9 V
Max. power consumption . . . . . . . . 780 µA
Connector . . . . . . . . . . . . . . . . . . . . Mini-XLR, 4-pin, female
Dimensions: Diameter. . . . . . . . . . . . . . . . . . . . 7.7 mm
Length microphone boom. . . . . . . 158 mm
Weight. . . . . . . . . . . . . . . . . . . . . . . 32 g

*measured with CV 18
