TG H57c

beyerdynamic Article no: 708941

Price:
$367

Description

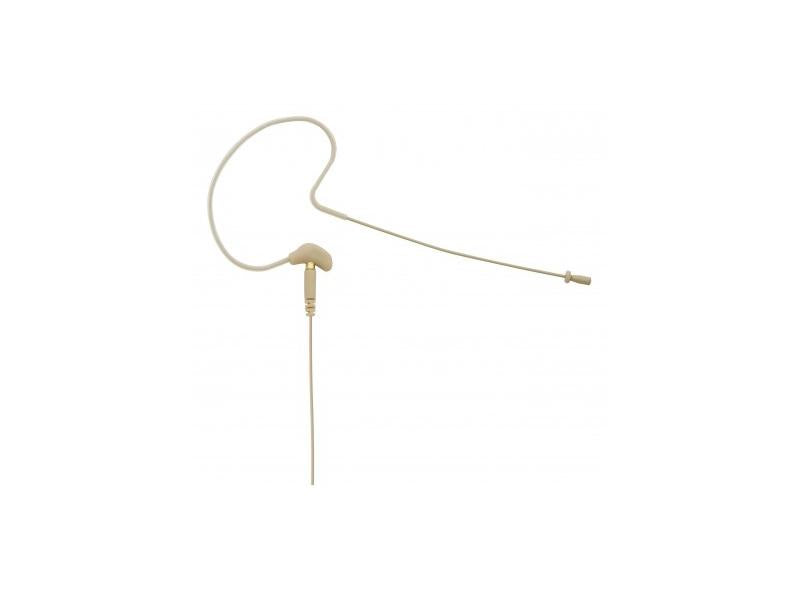

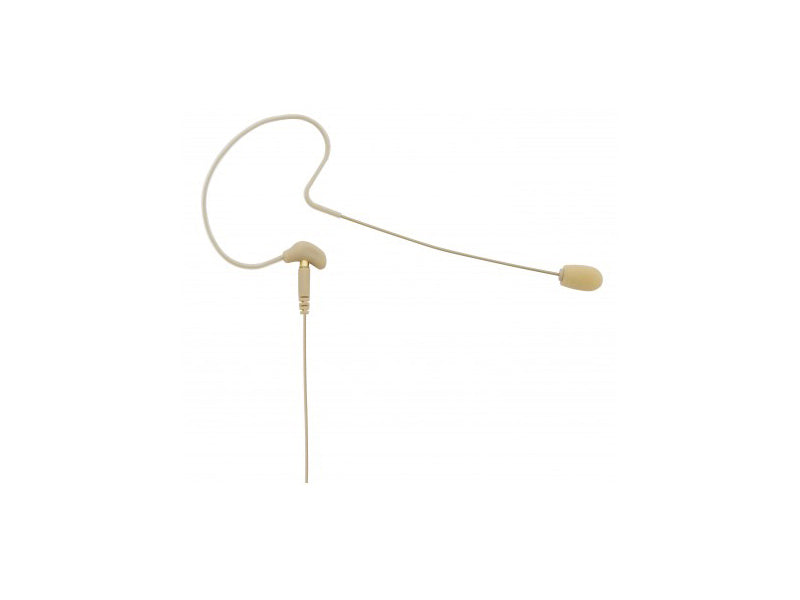

The TG H57 ear hook microphone commands but does not attract attention – in other words, a commanding and balanced sound meets a subtle appearance. The splash- and sweat-proof omnidirectional microphone can be worn on either side. Benefits that come into their own when the microphone is used for presentations or moderations.

The detachable connecting cable features a thread and can be replaced by another cable at any time.

With the included soft bag, the TG H57 can be safely transported without worrying about splash water or dropping the microphone.The TG H57 microphone is available as TG version and can therefore be used with the wireless TG 1000 microphone system. For wired applications with phantom power sources the TG H57 must be used with the optional MA-PVA power adapter. The microphone is available in beige.

Features:

High-quality miniature condenser microphone (omnidirectional)
Splash-proof capsule design
Flexible and rugged ear hook
Detachable cable with 4-pin female Mini-XLR connector

TG Pin Out:

The TG H57 is compatible with Beltpack Transmitters that use the TG Pin Out (grey ON/OFF switch). This allows the combination with every system using the TG Pin Out and therefore offers maximum flexibility.

Specifications:

Transducer type . . . . . . . . . . . . . . . . Condenser (back electret)
Operating principle . . . . . . . . . . . . . Pressure
Polar pattern . . . . . . . . . . . . . . . . . . Omnidirectional
Frequency response . . . . . . . . . . . . . 20 - 20,000 Hz
Open circuit voltage . . . . . . . . . . . . . 3.5 mV/Pa (-49 dBV)* ±3 dB
Nominal impedance . . . . . . . . . . . . . 1 kΩ
Max. SPL . . . . . . . . . . . . . . . . . . . . . 127 dB SPL*
Signal-to-noise ratio . . . . . . . . . . . . . 47 dB [CCIR, Q-Peak]*
Equivalent SPL . . . . . . . . . . . . . . . . . 35 dB [A, RMS]*
Power supply . . . . . . . . . . . . . . . . . . Direct current
Max. power consumption . . . . . . . . 0.5 mA
Supply voltage . . . . . . . . . . . . . . . . . 2 - 9 V
Connector . . . . . . . . . . . . . . . . . . . . Mini-XLR, 4-pin, female
Dimensions
Capsule diameter . . . . . . . . . . . . . 3 mm
Cable length . . . . . . . . . . . . . . . . . 1.2 m
Weight: with cable/connector. . . . . . . . approx. 11 g without cable/connector . . . . . . . . approx. 2.3 g

*measured with MA-PVA
