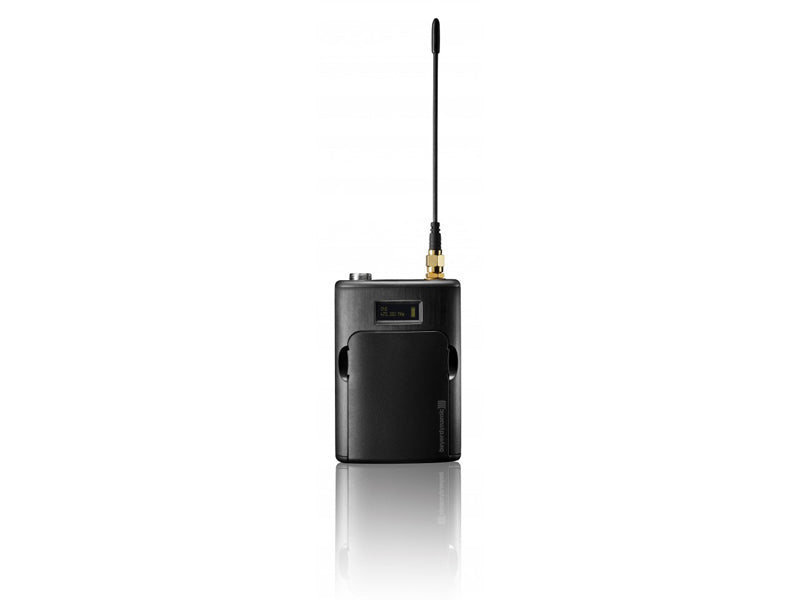

TG 1000 Beltpack Transmitter, Region C (Discontinued - Available Whilst Stock Lasts)

TG 1000 is beyerdynamic´s first 24-bit digital wireless system, which covers an impressive 319 MHz of the UHF bandwidth (470–789 MHz). With these two features alone, TG 1000 is a hugely flexible system which can be used in a wide variety of venues worldwide, competently and reliably. Combine this with a wealth of user-friendly features designed to enhance your performance and TG 1000 becomes your go-to wireless system regardless of application.

Features:
Compact shape and transmitter lock functionality
319 MHz bandwidth
24 bit digital transmission with gain ranging
line of sight range up to 300 meters
2.1 ms total latency
Synchronisation of receiver and transmitter below one second
Switchable input sensitivity (12dB attenuation)
OLED display
Charging contacts for WA-CD charging device
Encrypted data transmission
4-pin mini XLR connector (male) for microphones or instruments
Removable antennas with SMA connector
Removable belt clips for horizontal & vertical mounting

Version: Australia Region C 520 - 694 MHz

Region A 470 - 789 MHz
Region B 470 - 698 MHz (without 608 - 614 MHz)
Region C 520 - 694 MHz
Region D 650 - 758 MHz
Region E 470 - 714 MHz

Specifications:

Operating principle . . . . . . . . . . . . . . . . . Digital UHF beltpack transmitter
Frequency response . . . . . . . . . . . . . . .20 - 20,000 Hz
Antenna connection . . . . . . . . . . . . . . . .SMA
Encryption & Audio CODEC . .. . . . . . . ..Switchable, proprietary encryption scheme based upon a 16 bit pattern; Triple-Play‚ CODEC with low latency and high error resilience
Transmitter power . . . . . . . . . . . . . . . . . .10mW / 50 mW
Dynamic range . . . . . . . . . . . . . . . . .  .116 dB (A-weighted); +12 dB Pad = 128 dB
Display . . . . . . . . . . . . . . . . . . . . . . . . . . . .OLED
Transmission range . . . . . . . . . . . . .up to 300 metres under optimal conditions
Operating time . . . . . . . . . . . . . . . . . . . . .approx. 8 hrs.
Input level . . . . . . . . . . . . . . . . . . . . . . . . . max. + 18 dBu
Weight . . . . . . . . . . . . . . . . . . . . . . . . . . .  102 g without batteries
Dimensions . . . . . . . . . . . . . . . . . . . . . . .94x59x26 mm
Pin assignment of 4-pin connector:
Pin 1 = ground, Pin 2 = 5 V bias, Pin 3 = Audio, Pin 4 = active load
