Quinta MU 31

beyerdynamic Article no: 725110

Price:
$3,362

Description

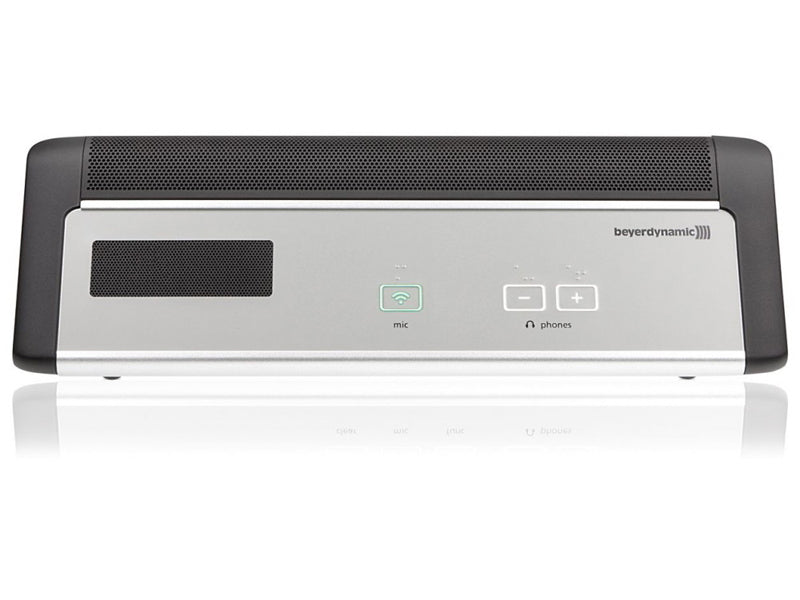

The Quinta MU 31 delegate microphone unit is equipped with a microphone button in the housing with which the participant can switch his microphone on and off. Additionally the unit features two buttons to adjust the level on the headphone output. The Revoluto microphone array technology with integrated microphone capsules provides a so-called corridor characteristic which ensures a wide range of good voice quality.

The speaker can move freely, i.e. can stand up or sit down, can move his/her head and move towards or away from the microphone unit. The ready-to-talk status of the microphone is indicated by the red LED strips on both sides of the housing. Depending on the configuration with the “Quinta Conference” software the following operating modes are available: Voice activation: the microphone is switched on, when someone speaks into it. Push-To-Talk: the microphone button must be held down, while the participant is speaking. The integrated loudspeaker reproduces the audio signal of the whole conference system.

Depending on the audio signal routing in the control unit the loudspeaker can reproduce other audio signals such as a wireless microphone in the auditorium. The parameters of the microphone unit are adjusted via PC by using the “Quinta Conference” software.

The parameters are set for all microphone units. The volume of the loudspeaker is adjusted and can be controlled with the Quinta control unit or a media control system. Each microphone unit has its own address. An existing system can be complemented at any time.

Features:

Fully-digital audio and control.
Direct Sequence Spread Spectrum (DSSS) provides high immunity from interference and unauthorised listening, even when using other radio systems.
Wireless transmission with integrated True Diversity antenna technology for transmitting and receiving.
Three selectable frequency bands : 2.4 / 5.2 / 5.8 GHz.
Automatic or manual silent change to an interference-free frequency response acc. to EN 3000328 ETSI.
Automatic recognition of interferences in all frequency ranges.
Processor-controlled and automatic audio channel allocation of the microphone units.
Digital 128-bit encryption and additional 24-bit PIN code against unauthorised listening.
Revoluto Microphone Array Technology.
Corridor characteristic.
LED strips on both sides of the housing indicate that the microphone unit is in ready-to-talk mode.
Touch buttons with backlit illumination in 3 colours and braille.
Microphone button to switch the microphone on / off.
2 buttons to adjust the level on the headphone output..
Voice-controlled activation of the microphone possible.
High-quality aluminium housing with a non-glare matt black coating of Alexit soft-touch paint (on the rear) and touch buttons (on the front).
Integrated two-way speakers.
The loudspeaker is turned off when the microphone is activated.
Adjustable mini stereo jack output (3.5 mm) as documentation or headphones.
Parameters can be programmed via the control unit and the appropriate configuration software.
Automatic Power OFF when the control unit is in the stand-by mode or switched off.
Power on LED.

Specifications:

Frequency range . . . . . . . . . . . . . . . . . . 2400 - 2483.5 MHz 5150 - 5250 MHz 5725 - 5875 MHz
Modulation . . . . . . . . . . . . . . . . . . . . . . DSSS (Direct Sequence Spread Spectrum) and QPSK/BPSK (Quadrature/ Binary Phase Shift Keying) digital signal processing acc. to own standard
Max. number of audio streams . . . . . . . 4 useable channels per system
Signal-to-noise ratio . . . . . . . . . . . . . . . 80 dB typ., (unweighted signal-to-noise ratio) Range between microphone units and control unit. . . . . . . . . . . . . . . . . . . > 100 m Power supply . . . . . . . . . . . . . . . . . . . . . . 110 – 240 V AC 50/60 Hz
Approval . . . . . . . . . . . . . . . . . . . . . . . . world-wide
