Quinta MU 22

beyerdynamic Article no: 723940

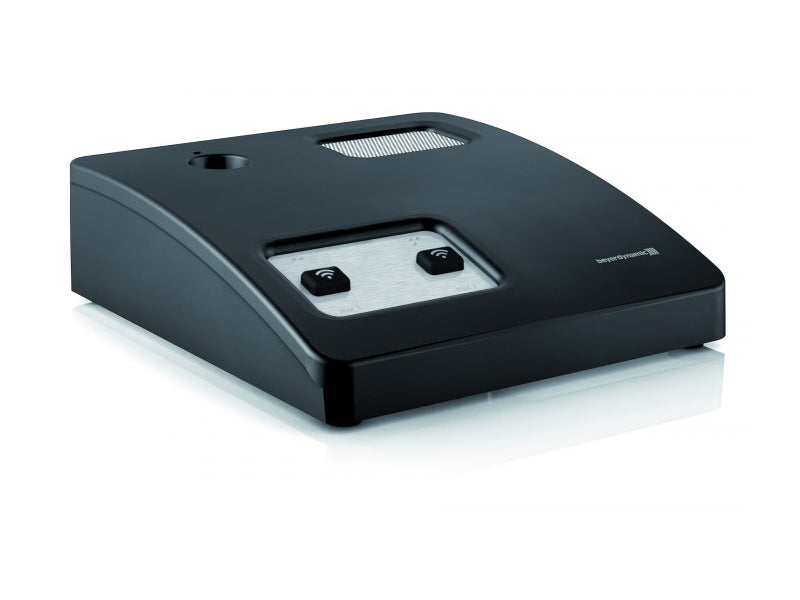

The Quinta MU 22 delegate microphone unit is equipped with two microphone buttons in the housing so that two participants can share one microphone unit. The operating software can differentiate who is to speak. With the Automatic Channel Allocation function the transmitting channels of the microphone units are allocated automatically.

When the microphone button is pressed in the manual operating mode the request-to-talk is received by the control unit (a possible external dual colour LED will illuminate red). Then the control unit checks which of the available receiving channels is free. Then the control unit informs the microphone unit which channel it should use for transmitting. When the channel of the microphone unit is set and checked by the control unit, the microphone is switched on. The ready-to-talk status of the microphone is also indicated by the red LED ring around the gooseneck microphone.

In the Request to-Talk-mode of the discussion system the request-to-talk is received, but the microphone is not switched on. The red LED indicates that the request-to-talk has been received. The microphone is switched on by the operator at the PC by using the “Quinta Conference” software or a media control system. When the microphone button is pressed once again, the delegate clears his/her request-to-talk.

Depending on the configuration with the “Quinta Conference” software the following operating modes are available: Override: the first microphone is switched off, when the maximum number of switched on microphones is exceeded. Voice activation: the microphone is switched on, when someone speaks into it. Push-To-Talk: the microphone button is held down, while the participant is speaking. The integrated loudspeaker reproduces the audio signal of the whole conference system.

Depending on the audio signal routing in the control unit the loudspeaker can reproduce other audio signals such as a wireless microphone in the auditorium. The parameters of the microphone unit are adjusted via PC by using the “Quinta Conference” software. The parameters are adjusted for all microphone units.

    Microphone Not Included ( Image 2 is a visual example).


    Designed to offer two people to jointly use the one unit.
    Direct Sequence Spread Spectrum (DSSS) provides high immunity from interference and unauthorised listening, even when using other radio systems.
    Wireless transmission with integrated True Diversity antenna technology for transmitting and receiving.
    Three selectable frequency bands : 2.4 / 5.2 / 5.8 GHz.
    Automatic or manual silent change to an interference-free freqquency response acc. to EN 3000328 ETSI.
    Automatic recognition of interferences in all frequency ranges.
    Processor-controlled and automatic audio channel allocation of the microphone units.
    Digital 128-bit encryption and additional 24-bit PIN code against unauthorised listening.
    Removable gooseneck microphone with Scudio® technology in different lengths, 5-pin XLR connector with hidden lock.
    Red LED ring around the gooseneck to indicate the ready-to-talk status of the microphone.
    Soft touch silicone buttons with backlit illumination in 3 colours.


    Frequency range. . . . . . . . .  . 2400 – 2483.5 MHz 5150 – 5250 MHz 5725 – 5875 MHz Modulation . . . . . . . . . . . . . . . . . . . DSSS (Direct Sequence Spread Spectrum) and QPSK/BPSK (Quadrature/ Binary Phase Shift Keying) digital signal processing acc. to own standard.
    Max. number of audio streams. . . . . 4 useable channels per system
    Signal-to-noise ratio . . . . . . . . . . . . . 80 dB typ., (unweighted signal-to-noise ratio) Range between microphone units and control unit . . . . . . . . . . . . > 100 m [109.36 yds] Power supply . . . . . . . . . . . . . . . . . . 100 – 240 V AC 50/60 Hz
    Approval . . . . . . . . . . . . . . . . . . . . . world-wide
