Quinta CC 2/600 (Discontinued - Available Whilst Stock Lasts)

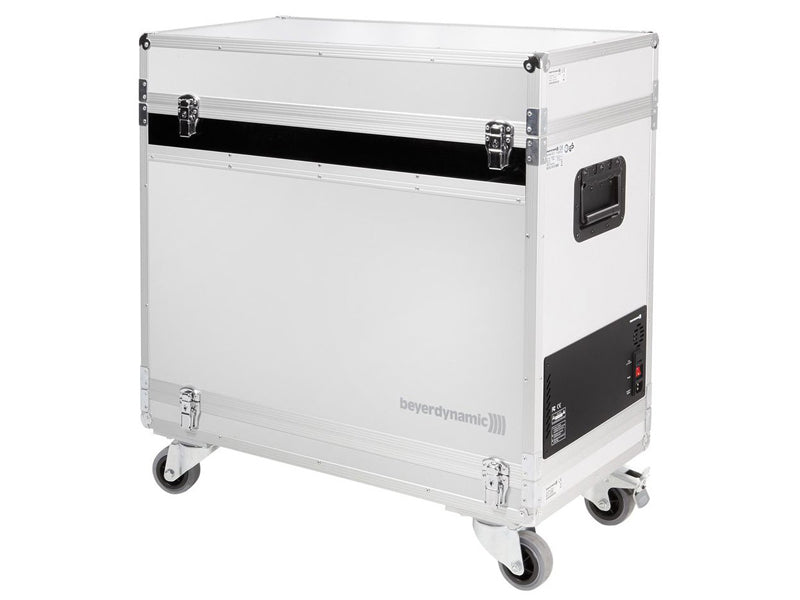

The Quinta CC 2 / 600 is a modular charging and transport case. The basic version consists of a cover (Quinta CT 2 / 600), a charging unit (Quinta CD 2) for 10 microphone units and a bottom with casters (Quinta CW 2). This version can be used for the microphone units equipped with the Classis GM 316 Q. Each charging unit has 10 compartments for the microphone units. On both sides there are handles for comfortable carrying.

Quinta CD 2 charging units that are used with microphone units equipped with Classis GM 316 Q gooseneck microphones can not be stacked due to the length of the microphone. Silver anodised aluminium profiles protect the edges from shocks and ensure an exact fitting of the individual sections. There are four locking chromium-plated automatic locks per section. For charging the microphone units are put into the charging facilities. Shock-mounted charging contacts ensure the electric connection between microphone unit and power supply unit.

All batteries are charged simultaneously. After approximately 2.5 hours the battery is fully charged, depending on the previous use. The charging state of the batteries is indicated by the LED ring of the gooseneck microphone and can be seen from the outside through a glass panel or when the cover is opened. To avoid a self discharge of the batteries, trickle charging is carried out. So each microphone unit has its full capacity at any time.

Features:

Modular case to accommodate the microphone units, charging electronics and discussion control unit
Integrated power supply unit for charging 1 to 10 microphone units
Simultaneous charging of all batteries without a previous discharge being necessary
Window to observe the charging status

Specifications:

Power supply . . . . . . . . . . . . . . . . . . . . 100 - 240 V AC , 50 / 60 Hz
Fuse at the mains socket . . . . . . . . . 2 x 6.3 A (slow blow)
Power consumption . . . . . . . . . . . . . max. 180 W
Max. ambient temperature when charging
(< 90% atmospheric humidity) . . . . . +10C - +35C [50F - +95F]
Storage temperature . . . . . . . . . . . . -20C  - +55C [4F  - +131F]
Charging unit. . . . . . . . . . . . . . . . . . 10 microphone units parallel
Charging time . . . . . . . . . . max. 3.5 hours when the battery is completely empty
Dimensions (W x H x D) . . . . . . . 757 x 476 x 370 mm [29.8" x 18.74" x 14.57"]
Weight . . . . . . . . . . . . . . . . . . . . . . . approx. 12 kg
