Classis GM 313 Q (Discontinued - Available Whilst Stock Lasts)

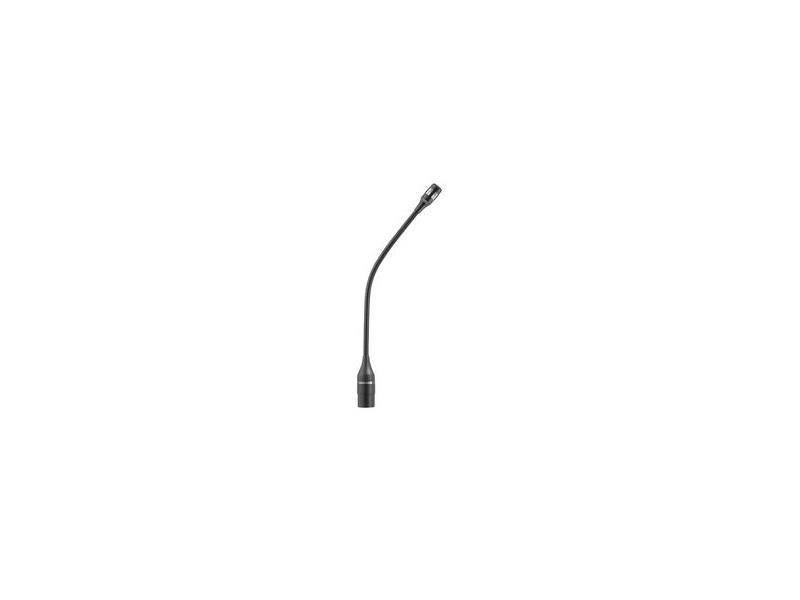

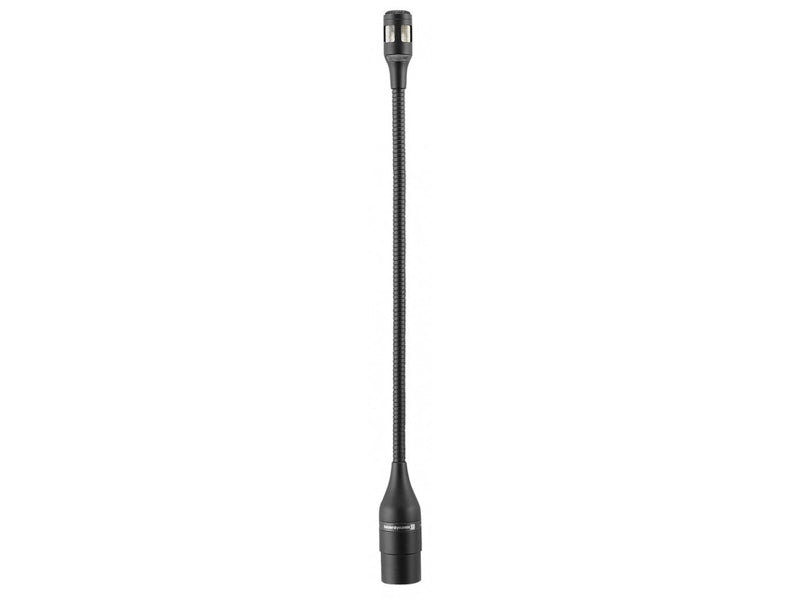

The GM 313 Q gooseneck microphone is available as optional accessory to connect to the microphone unit. Due to the cardioid polar pattern this microphone has a high gain before feedback and provides highest intelligibility of speech. The LED ring displays the ready-to-talk status of the microphone. Inside the microphone there is a filter to eliminate wind an pop noise. The microphone features the innovative Scudio‚  technology, making the microphones absolutely insensitive to wireless communication devices such as mobile phones. The microphone is mounted on a 6 mm thick gooseneck and due to its mat black, non-glare surface almost invisible.

Features:

For direct connection to the Quinta or Orbis microphone units
RFI-proof with respect to wireless communication devices thanks to Scudio‚ technology
An LED ring indicates the ready-to-speak status of the microphone
Length 300mm

Specifications:

Transducer type . . . . . . . . . . . . . . . . Condenser (electret)
Operating principle. . . . . . . . . . . . . . Pressure gradient
Frequency response . . . . . . . . . . . . . 50 - 19,000 Hz
Polar pattern . . . . . . . . . . . . . . . . . . Cardioid
Open circuit voltage at 1 kHz . . . . . . 17 mV/Pa
Nominal impedance . . . . . . . . . . . . . < 200 ohm
Load impedance. . . . . . . . . . . . . . . . ‚1 k ohm
Max. SPL . . . . . . . . . . . . . . . . . . . . . 107 dB [SPL @ 1% THD]
Signal-to-noise ratio/Noise voltage . . 69 dB [A] / 6.0 µV [A]
Equivalent SPL . . . . . . . . . . . . . . . . . 25 dB[A]
Microphone connection . . . . . . . . . . 5-pin XLR (male)
Head diameter with pop shield. .approx. 26 mm without pop shield . approx. 13.6 mm Gooseneck diameter . . . . . . . . . . . . 6 mm [0.24"]
