Classis GM 115 Q

beyerdynamic Article no: 726095

Price:
$209

Description

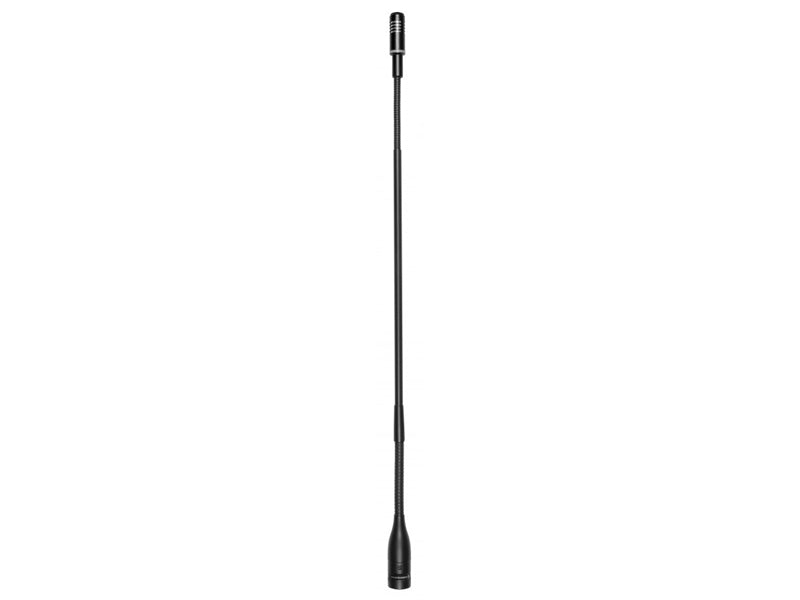

Condenser gooseneck microphone (cardioid), black, length 500 mm (20"), with two flexible segments, illuminated ring, 5-pin XLR male, without pre-amplifer, used with Quinta MU 21/22/23 and Orbis MU 21/23/41/43 microphone units, windscreen included.

The Classis GM 115 Q gooseneck microphone is used for direct connection to the Quinta or Orbis microphone units. The microphone features a cardioid polar pattern with a high gain before feedback. The ready-to-speak status of the microphone is displayed by an LED ring. Inside the microphone grille there is a filter to eliminate wind or pop noise. The microphone is mounted on a 6 mm thick gooseneck and due to its mat black, non-glare surface it discretely blends into the environment.

Features:

  • Direct connection to the Quinta or Orbis microphone units
  • An LED ring indicates the ready-to-speak status of the microphone
  • Connection with 5 pin XLR plug
  • Low feedback cardioid pattern
  • Filter to suppress wind or pop noise
  • Length 500mm

Specifications:

Transducer type . . . . . . . . . . . . . . . . Condenser (electret)
Operating principle . . . . . . . . . . . . . Pressure gradient
Frequency response
Close miking . . . . . . . . . . . . . . . . . . 40 - 13,000 Hz
Distant miking (distance 1 m) . . . . . . 200 - 13,000 Hz
Polar pattern . . . . . . . . . . . . . . . . . . Cardioid
Open circuit voltage at 1 kHz . . . . . . 17.8 mV/Pa = -35 dBV ±3 dB*
Nominal impedance . . . . . . . . . . . . . 2.2 kΩ Max.
SPL . . . . . . . . . . . . . . . . . . . . . 112 dB [SPL @ 1% THD]*
Signal-to-noise ratio . . . . . . . . . . . . . 62 dB [A, rms]*
Equivalent SPL . . . . . . . . . . . . . . . . . 32 dB [A, rms]*
Power supply . . . . . . . . . . . . . . . . . . 1.5 - 9 V DC
Microphone connection . . . . . . . . . . 5-pin XLR (male)
Head diameter with pop shield. . approx. 25 mm-without pop shield  . . approx.14 mm Gooseneck diameter . . . . . . . . . . . . approx. 7 mm [0.28"]
Total length . . . . . . . . . . . . . . . . . . . approx. 470 mm [18.5"]
Weight. . . . . . . . . . . . . . . . . . . . . . . approx. 110 g [3.8 oz]
*depending on the connected electronics
