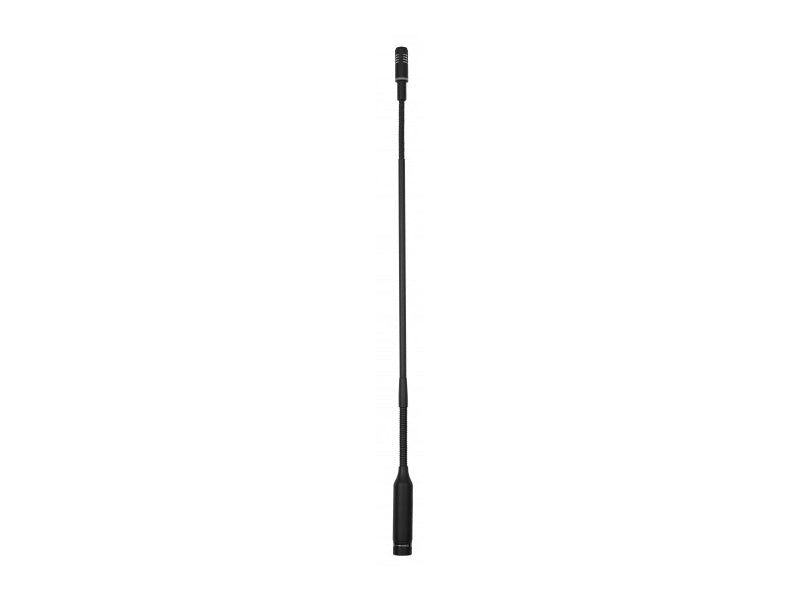

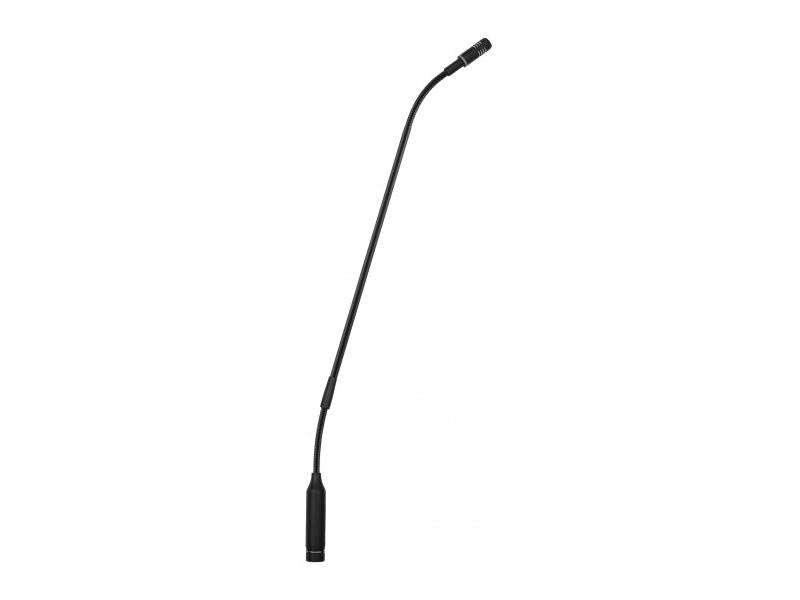

Classis GM 115 (Discontinued - Available Whilst Stock Lasts)

The Classis GM 115 gooseneck microphone is fitted with a 5-pin male connector and suitable for different applications. The microphone features a cardioid polar pattern with a high gain before feedback. In order to suppress wind or pop noise, there is a switchable low-cut filter on the circuit board. The microphone is mounted on a 6 mm thick gooseneck and due to its matt black, non-glare surface it discreetly blends into any environment. An LED ring indicates the ready-to-speak status of the microphone. The microphone can be powered with any phantom power source supplying 12 to 48 V. The microphone is supplied with a foam wind shield.

Features:

Cardioid polar pattern with a high gain before feedback
Filter to suppress wind or pop noise
Non-glare surface
With LED ring
Connection via 5-pin XLR male connector
Rigid tube with two flexible goosenecks
Length 500 mm

Specifications:

Transducer type . . . . . . . . . . . . . . Condenser (electret)
Operating principle. . . . . . . . . . . . Pressure gradient
Polar pattern . . . . . . . . . . . . . . . . Cardioid
Frequency response Close miking . . . . . . . . . . . . . . . . 70 - 16,500 Hz
Distant miking (distance 1 m) . . . . 150 - 16,500 Hz
Open circuit voltage . . . . . . . . . . . 14 mV/Pa = -37.1 dBV ±3 dB
Nominal impedance . . . . . . . . . . . 250 ohm
Max. SPL . . . . . . . . . . . . . . . . . . . 124 dB [SPL @ 1% THD]
Signal-to-noise ratio . . . . . . . . . . . 64 dB [A, rms]
Equivalent SPL . . . . . . . . . . . . . . . 30 dB [A, rms]
Power supply . . . . . . . . . . . . . . . . Phantom power P12 ‚ P48
Power supply LED. . . . . . . . . . . . . 5 V/4.5 mA, 10 V/22.5 mA
Power consumption without LED . . . . . . . . . . . . . . . . . 2.3 mA
Power consumption LED at 5 V + microphone. . . . . . . . . . . . . . . . 6.8 mA
Power consumption LED at 10 V + microphone . . . . . . . . . . . . . . . 24.8 mA
Microphone connection . . . . . . . . 5-pin XLR (male)
Head diameter with pop shield. . . approx. 25 mm  without pop shield . . . . . . . 14 mm Gooseneck diameter . . . . . . . . . . top approx. 6 mm - bottom approx. 8 mm
Total length . . . . . . . . . . . . . . . . . 516 mm
Weight. . . . . . . . . . . . . . . . . . . . . 150 g
