Classis GM 105

beyerdynamic Article no: 729744

Price:
$311

Description

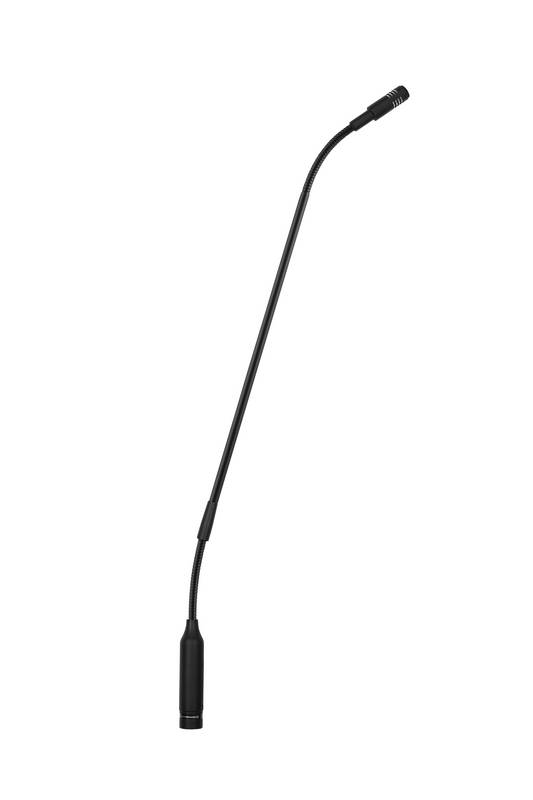

The Classis GM 105 gooseneck microphone is fitted with a 3-pin male connector and suitable for different applications. The microphone features a cardioid polar pattern with a high gain before feedback. In order to suppress wind or pop noise, there is a switchable low-cut filter on the circuit board. The microphone is mounted on a 6 mm thick gooseneck and due to its matt black, non-glare surface it discreetly blends into the environment. The microphone can be powered with any phantom power source supplying 12 to 48 V. The microphone is supplied with a foam wind shield.

Features

  • Cardioid polar pattern with a high gain before feedback
  • Filter to suppress wind or pop noise
  • Non-glare surface
  • Connection via 3-pin XLR male connector
  • Rigid tube with two flexible goosenecks
  • Length 500 mm [19.68"]

Specifications:

Transducer type . . . . . . . . . . . . . . Condenser (electret)
Operating principle. . . . . . . . . . . . Pressure gradient
Polar pattern . . . . . . . . . . . . . . . . Cardioid
Frequency response
Close miking . . . . . . . . . . . . . . . . 70 – 16,500 Hz
Distant miking (distance 1 m) . . . . 150 – 16,500 Hz
Open circuit voltage . . . . . . . . . . . 14 mV/Pa = -37.1 dBV ±3 dB
Nominal impedance . . . . . . . . . . . 250 Ω Max.
SPL . . . . . . . . . . . . . . . . . . . 124 dB [SPL @ 1% THD]
Signal-to-noise ratio . . . . . . . . . . . 64 dB [A, rms]
Equivalent SPL . . . . . . . . . . . . . . . 30 dB [A, rms]
Power supply . . . . . . . . . . . . . . . . Phantom power P12 – P48
Power consumption . . . . . . . . . . . 2.3 mA
Microphone connection . . . . . . . . 3-pin XLR (male)
Head diameter with pop shield
approx. 25 mm [0.98"] without pop shield . . 14 mm [0.55"]
Gooseneck diameter . top approx. 6 mm [0.24"] bottom approx. 8 mm [0.32"]
Total length . . . . . . . . . . . . . . . . . 516 mm [20.31"]
Weight. . . . . . . . . . . . . . . . . . . . . 140 g [4.93 oz]
