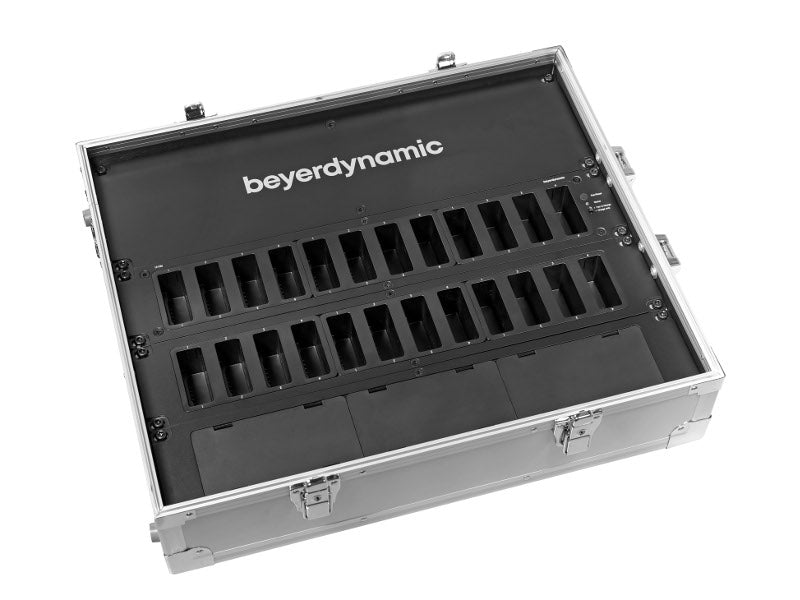

The Unite CC is a multifunctional device, which is used to charge the batteries integrated in the Unite bodypack transmitters and receivers as well as to store and transmit the pairing information (group ID and channel name) from the transmitter to the receiver.
For optimal security against unauthorised listening a key will be generated inside the Unite CC and transmitted to the transmitters and receivers during the pairing process. The Unite CC can be integrated into a network by using the Ethernet connection. When using the Unite Manager software, the case can be monitored remotely. Further-more, firmware updates and configurations can be carried out via this software.
For transport the Unite CC is equipped with an ergonomic carrying handle. The practical Unite CC also serves as storage for the Unite bodypack transmitters and receivers. The Unite CC-24P version is provided with a maximum of 24 charging compartments. The charging status of the batteries is indicated by a status indicator on the transmitter or receiver.
NOTE: The CC-24P Charging Case (excludes any additional Unite products as per Images 4, 5 and 6)
Case for charging, transport and storage with various functions
Button for pairing process
Status indicator for pairing process
Switch for, Pairing & Charging‚ or Charging.

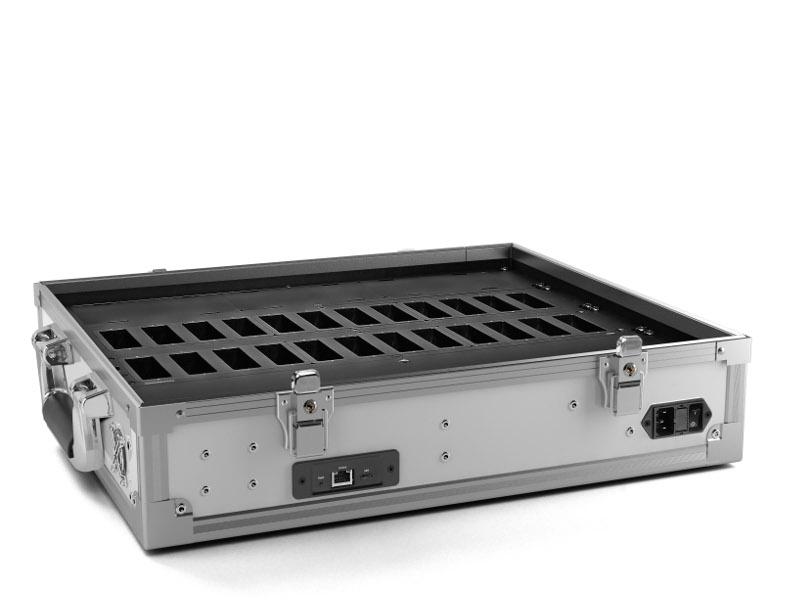

Ethernet connection for:
Remote control and monitoring
USB connection for:
Removable and lockable cover with automatic locks
Ergonomic carrying handle
Rugged wooden construction with laminated cover and reinforced aluminium frame
Stackable casing corners
Lateral plastic feet
Integrated power supply with switchable IEC mains connection with fuse
more charging compartments for up to 36 units
AC input: . . . . . . . . . . .100 - 240 V, 50/60 Hz
Fuse: . . . . . . . . . . .2 x F 4A L 250V
Nominal current: . . . . . . . . . . . .2.5 A
Power consumption: . . . . . . . . . . . .max. 100 W
Max. charging time: . . . . . . . . . . .4 hours
Connections: . . . . . . . . . . Ethernet
USB type C
Power connector with switch
Ambient temperature: . . . . . . . . . .-5C to +40C
Dimensions: . . .¬†incl. handle, base (l x w x h): 523 x 444 x 171 mm [20.6" x 17.5" x 6.8"]
Weight: . . .Unite CC-24P version: approx. 10 kg
