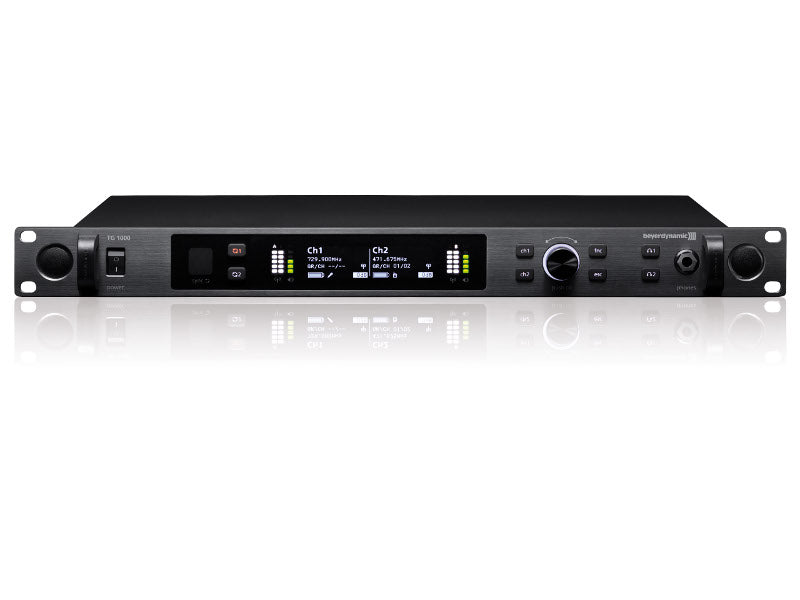

TG 1000 Dual Receiver

beyerdynamic Article no: 709131

Price:
$6,492

Description


The TG 1000 dual receiver is beyerdynamic’s first 24-bit digital wireless system, which covers an impressive 319 MHz of the UHF bandwidth (470 - 789 MHz). With these two features the TG 1000 is a extremely flexible system which can be used in a wide variety of venues worldwide. Combine this with a wealth of user-friendly features designed to enhance your performance and TG 1000 becomes your go-to wireless system regardless of the application.

Ruggedly built and featuring an extremely wide 319 MHz UHF bandwidth, TG 1000 is an ideal product investment for rental companies due to its ability to cater for a large variety of frequency requirements worldwide. Combine this with 24-bit digital converters and a collection of superb interchangeable microphone capsules and it’s easy to see the flexibility on offer with the TG 1000 digital wireless system.

TG 1000 is the ideal wireless system for businesses around the world. It’s wireless transmission signal features advanced digital encryption to keep your meetings totally secure. To ensure ease of use, TG 1000 features One Button Navigation and the intuitive Chameleon Software which is already installed on the receiver.

Features:

Digital two-channel UHF true diversity receive
319 MHz bandwidth
2,1 ms total latency
Suitable for 19" rack mounting, 1 U
BNC In/Outputs
XLR & jack outputs
Triple Play Codec for low latency (1.2 ms), high error resilience and finest audio quality
Looping through the antenna signals of up to 6 receivers
Status display (battery, transmitter type, microphone capsule)
Browser control and monitoring via integrated web server
Encrypted data transmission
DANTE integrated interface

Versions: Australia - Region C 520 - 694 MHz

Region A 470 - 789 MHz
Region B 470 - 698 MHz (without 608 - 614 MHz)
Region C 520 - 694 MHz
Region D 470 - 638 MHz & 650 - 758 MHz
Region E 470 - 714 MHz

Specifications: Australia Region C: 520 – 694 MHz

Operating principle: . . . . . . . . . .Digital UHF true diversity receiver
Frequency range
Region A: 470 – 789 MHz
Region B: 470 – 698 MHz without 608 – 614 MHz(US TV channel 37)
Region C: 520 – 694 MHz
Region D: 650 – 758 MHz
Region E: 470 – 714 MHz
Frequency response: . . . . . . . . . .20 – 20,000 Hz
Dynamic range: . . . . . . . . . . .116 dB (128 dB with -12 dB level decrease in the beltpack transmitter)
Output level: . . . . . . . . . . .max. + 18 dBu balanced(XLR and jack output; 0 to 42 dB digital gain + 12dB analogue boost
Output impedance
Jack output: 120 Ω
Antenna input: 8 V DC, 150 mA
Headphone output: . . . . . . . . . . . .switchable with volume control
Latency: . . . . . . . . . . . . . .2.1 ms (overall latency from transmitter to receiver)
Encryption & Audio CODED: . . . . . . . . . .Switchable, proprietary encryption scheme based upon a 16 bit pattern; “Triple-Play” CODEC with low latency and high error resilience
Display: . . . . . . . . . . . .OLED
Mains connection: . . . . . . . . . . . . . . 100 V – 240 V AC
Power consumption: . . . . . . . . . . . .13.8 W (typ.)
Weight: . . . . . . . . . . . . . . .3200 g
Dimensions: . . . . . . . . . . . . .420x242x44 mm
Antenna connection: . . . . . . . . . . .2 x BNC input/2 x BNC output
Network connection: . . . . . . . . . . . . .Ethernet / Dante, RJ45: 48 kHz, 96 Hz, 24 bit
