Quinta TB

beyerdynamic Article no: 729604

Price:
$1,667

Description

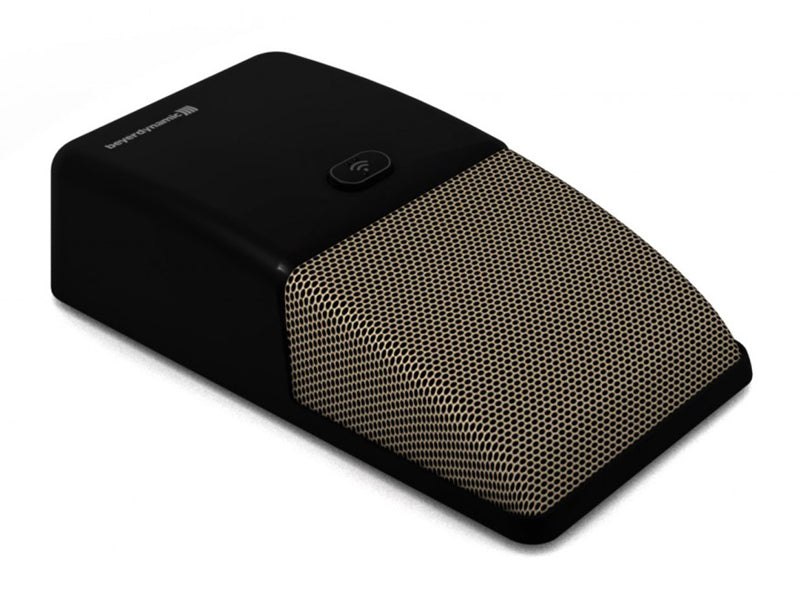

The wireless semi-cardioid Quinta TB boundary microphone with a highgain-before feedback complements the Quinta conference system. The microphone is provided with a three-coloured backlit microphone button containing a braille inscription to turn the microphone on or off. The microphone has integrated transmitting and receiving antennae (antenna diversity) in a high-quality housing of synthetic material with a black soft touch surface and a microphone grille in stainless steel look.

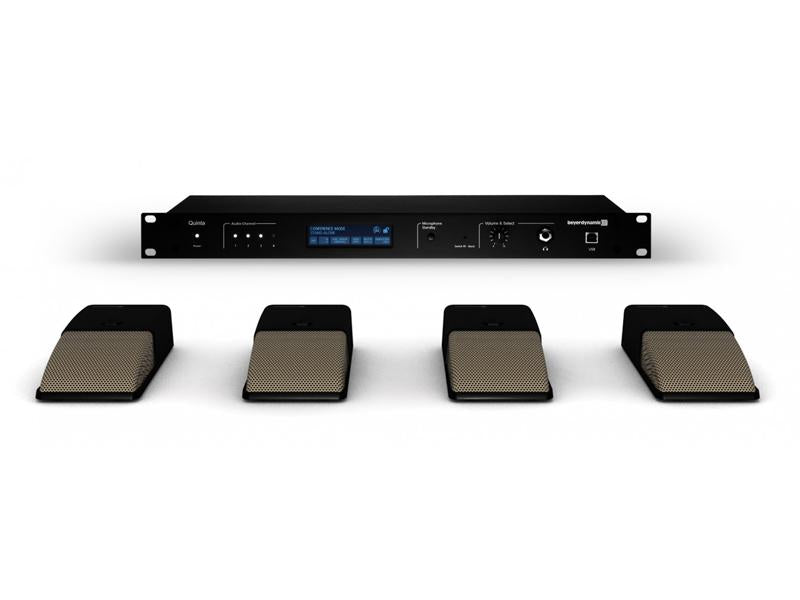

With the Automatic Channel Allocation function, the transmitting channels of the microphone units / boundary microphones are allocated automatically. When the microphone button is pressed in the manual operating mode, the request-to-talk is received by the control unit (a possible external dual colour LED will illuminate red). The control unit checks which of the available receiving channels is free, then the control unit informs the microphone unit / boundary microphone which channel it should use for transmitting.

When the channel of the microphone unit / boundary microphone is set and checked by the control unit, the microphone is switched on. The ready-to-talk status of the microphone is also indicated by the green lighting microphone button. In the Request-to-Talk-mode of the discussion system the request-to-talk is received, but the microphone is not switched on. The red lighting microphone button indicates that the request-to-talk has been received.

The microphone is switched on by the operator at the PC by using the “Quinta Conference” software or a media control system. When the microphone button is pressed once again, the delegate clears his/her request-to-talk. Depending on the configuration with the “Quinta Conference” software the following operating modes are available: Override: the first microphone is switched off, when the maximum number of active microphones is exceeded. Push-To-Talk: the microphone button is held down, while the participant is speaking.

The parameters of the microphone unit are adjusted via PC by using the “Quinta Conference” software. The parameters are adjusted for all microphone units and boundary microphones. All microphone units and boundary microphones have an individual address. Therefore, microphone units and boundary microphones can be rented or purchased at any time to complement an existing system. In the rental business existing systems can be complemented in this way

Features:

Direct Sequence Spread Spectrum (DSSS) provides high immunity from interference and unauthorised listening, even when using other radio systems.
Wireless transmission with integrated True Diversity antenna technology for transmitting and receiving.
Three selectable frequency bands : 2.4 / 5.2 / 5.8 GHz.
Automatic or manual silent change to an interference-free frequency response acc. to EN 3000328 ETSI.
Digital 128-bit encryption and additional 24-bit PIN code against unauthorised listening.
Parameters can be programmed via the control unit and the appropriate configuration software.
Automatic Power OFF when the control unit is in the stand-by mode or switched off.
Power supply via integrated NiMH batteries.
Charging status of the battery can be monitored and transmitted to the control unit.
Operating control LED indicates the status when the minimum capacity is too low.
Minimum operating time of 16 hours.

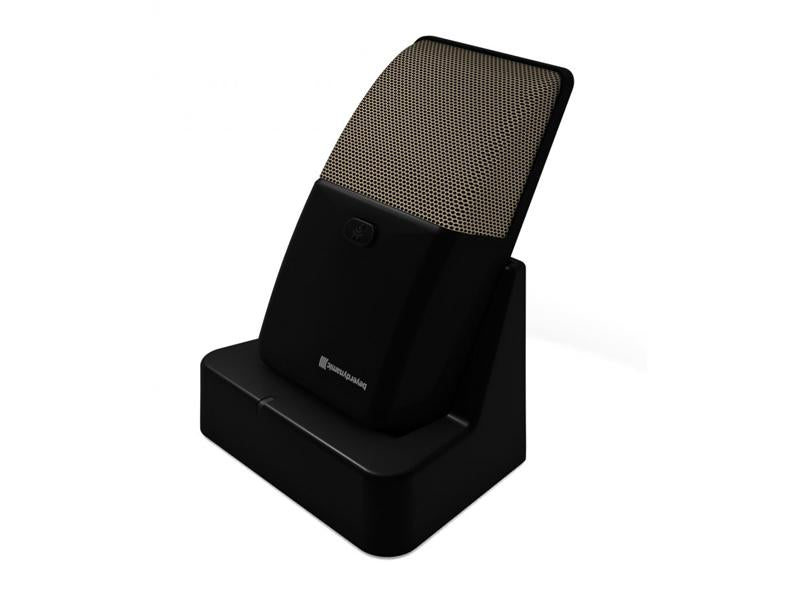

DC connector for power supply operation and charging.
Operating modes in the Conference Mode: Manual, Override, Push-To-Talk, Push-To-Mute.
Operating modes in the Microphone Mode: On/Off, Push-To-Mute, Global Mute.
Semi-cardioid polar pattern button with braille inscription to switch the microphone on or off.
High-quality housing of synthetic material with a non-glare coating of Alexit soft-touch paint.
Microphone grille in stainless steel look.

Specifications:

Operating principle . . . . . . . . . . Digital triple band transmitter
Frequency range . . . . . . . . . . . . 2400 – 2483.5 MHz 5150 – 5250 MHz 5725 – 5875 MHz Modulation . . . . . . . . . . . . . . . . DSSS (Direct Sequence Spread Spectrum) and QPSK/BPSK (Quadrature/ Binary Phase Shift Keying) digital signal processing acc. to own standards
Max. number of audio streams . . 4 usable channels per system
Range between handheld transmitter and control unit . . . . > 100 m [109.36 yds] with a direct line of sight (depending on the frequency band)
Approval . . . . . . . . . . . . . . . . . . world-wide
Transmitter power . . . . . . . . . . . max. 20 dBm per channel and region (average, duty cycle ≤ 30%)*
Transducer type . . . . . . . . . . . . . Condenser (back electret)
Operating principle . . . . . . . . . . Pressure gradient
Polar pattern . . . . . . . . . . . . . . . Semi-cardioid
Dynamic range. . . . . . . . . . . . . . 68 dB (A-weighted)
Open circuit voltage. . . . . . . . . . 300 mV/Pa
Max. SPL at 1 kHz . . . . . . . . . . . 100 dB SPL
RFI proof . . . . . . . . . . . . . . . . . . Scudio™ technology
Power consumption. . . . . . . . . . approx. 100 mA (microphone open)
Power supply . . . . . . . . . . . . . . . 4.8 VDC via integrated
NiMH rechargeable batteries (4 cells, each with 2100 mAh)
Operating time . . . . . . . . . . . . . 16 hours at least;
DC powered permanent operation possible with CA 2459 mains charger adapter Charging time with power supply unit (15 V DC, 1.6 A) . . . max. 2 hours
Temperature range (at < 90% humidity) . . . . . . . . . +10 °C – +40 °C (+50 °F – +104 °F) Storage temperature (at < 90% humidity) . . . . . . . . . -20 °C – +55 °C (-4 °F – +133 °F) Dimensions (L x W x H) . . . . . . . approx. 138 x 76 x 38 mm (5.4 x 3 x 1.5 in)
Weight . . . . . . . . . . . . . . . . . . . approx. 410 g (0.9 lbs)
