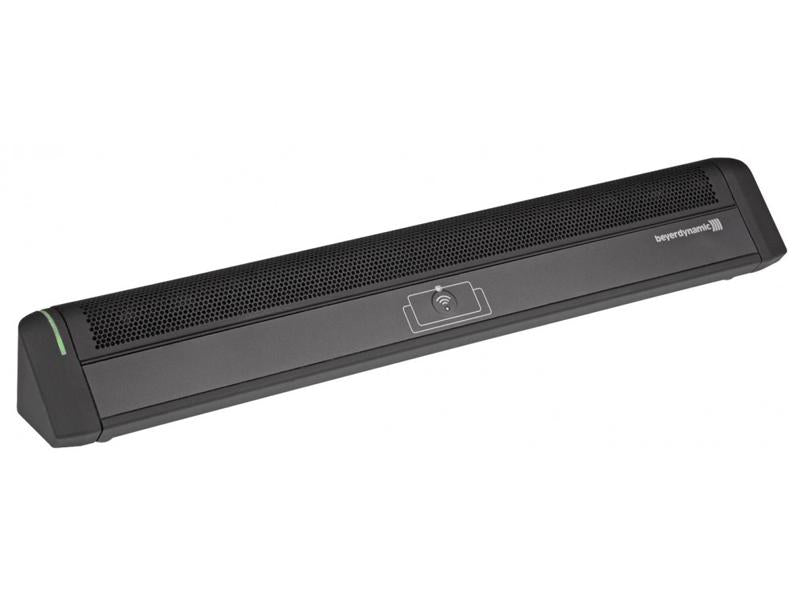

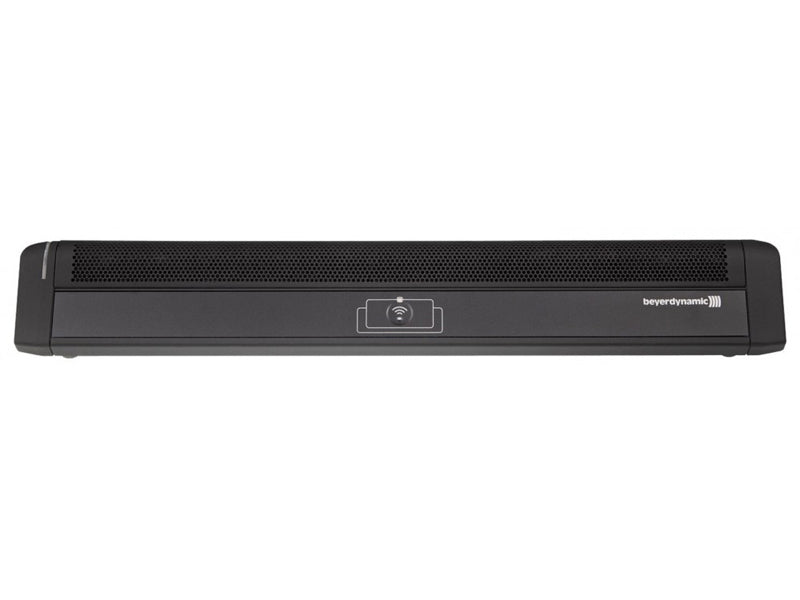

MPR 211 B

beyerdynamic Article no: 725099

Price:
$1,633

Description

The MPR 211 is a desktop microphone with many different functions. Depending on the application, the operating mode ON/OFF, Push-To-Talk (PTT) or Push-To-Mute (PTM) can be selected at the bottom of the microphone unit. The different functions are controlled by a micro-controller.

The Revoluto technology with integrated microphone capsules provides a so-called corridor characteristic which ensures a wide range of good voice quality. Within this range the speaker can move freely, i.e. can stand up or sit down, move his/her head and move towards or away from the microphone.

The MPR 211 is turned on/off with a silent microphone button. The illuminated LED on the microphone button and the LED on the left hand side indicate that the microphone is ready to speak into. The MPR 211 is ideal as desktop microphone for discussions, tele/video conferencing and announcements.

The MPR 211 can also be operated with an external control contact. As a choice the built-in microphone button is switched on or off. An external device (e.g. mixing amplifier for announcements) can be triggered via the control output when operating the microphone button (e.g. mixing amplifier for announcements). These basic functions are possible: Autonomous, Remote and External Logic.

Features:

• “Intelligent”, microprocessor-controlled microphone unit
• ON/OFF, Push-To-Talk and Push-To-Mute functions
• Revoluto Technology
• Corridor characteristic
• State-of-the-art metal casing
• LEDs
• Silent microphone button
• Linear frequency response with high bandwidth
• Operating modes: Autonomous, Remote, Ext. Logic
• Bare-ended connecting cable

Specifications:



Transducer: . . . . . . . . . . .Condenser (back electret)
Frequency response: . . . . . . . . . . 130 – 17,000 Hz
Microphone: . . . . . . . . . . .Microphone Array, patented
Polar pattern: . . . . . . . . . . .Corridor
Optimal distance of the speaker: . . . . . . . . . . .60 - 80 cm
Open circuit voltage at 1 kHz: . . . . . . . . . . .approx. 200 mV/Pa
Output level depending on the selected position
Hi: 200 mV/Pa
Mid: 60 mV/Pa (-10 dB)
Lo: 20 mV/Pa (-20 dB)
Nominal impedance: . . . . . . . . . . .200 Ω
Load impedance: . . . . . . . . . . .> 1 kΩ
Max. SPL at f = 1 kHz, k < 1%: . . . . . . . . . . .112 dB
Signal-to-noise ratio rel. to 1 Pa: . . . . . . . . . . .60 dB
Voltage supply: . . . . . . . . . . .Phantom powering 48 V ±4 V to 6.8 kΩ supply impedance
24 V ±4 V to 1.2 kΩ supply impedance
Power consumption: . . . . . . . . . . .10 mA
T.H.D: . . . . . . . . . . .< 0.1%
Connection: . . . . . . . . . . .bare-ended 6-core cable, 3 m long
Temperature range: . . . . . . . . . . .-10 °C to +40 °C
Dimensions . . . . . . . . . . .(L x H x D): 300 x 40 x 45.5 mm
Weight: . . . . . . . . . . .230 g
*incl. LED in the microphone button
