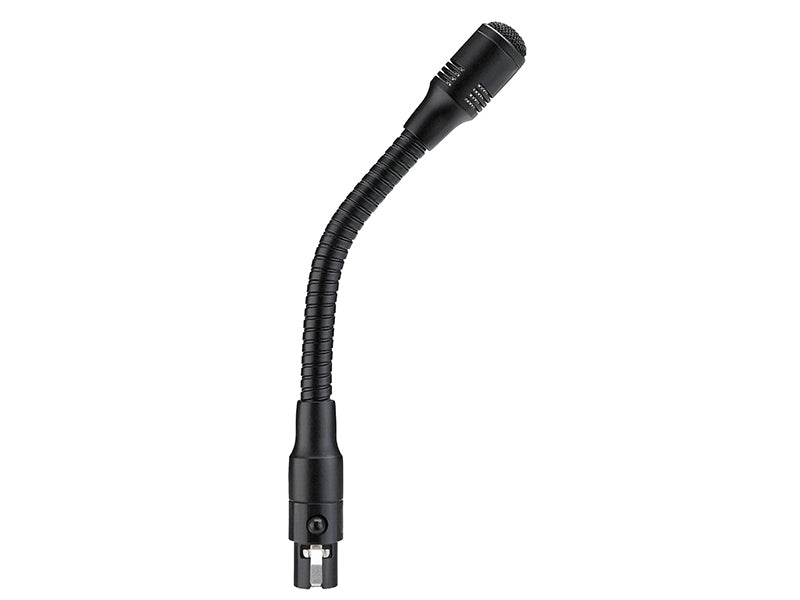

Classis GM301 Unite (Discontinued - Available Whilst Stock Lasts)

The Classis GM 301 Unite microphone features the innovative Scudio technology, making the microphone absolutely insensitive to wireless communication devices such as mobile phones. Due to its supercardioid polar pattern the Classis GM 301 Unite features a high-gain-before feedback and excellent intelligibility. It can directly be connected to a bodypack transmitter of the Unite system.

Easy Connection and setup.

The Classis GM 301 Unite provides a 4-pin female mini XLR connection (TG pin assignment) to connect to appropriate bodypack transmitters. With the gooseneck you can direct the microphone to the sound source. The microphone is powered via a bodypack transmitter.

Specifications:

Transducer type: . . . . . . . . . . .Condenser (back electret)
Operating principle: . . . . . . . . . . Pressure gradient
Frequency response: . . . . . . . . . . 50 - 19,000 Hz
Polar pattern: . . . . . . . . . . Supercardioid
Open circuit voltage at 1 kHz: . . . . . . . . . . .17 mV/Pa
Nominal impedance: . . . . . . . . . . .< 200 ohm
Load impedance: . . . . . . . . . . .1k ohm
S/N ratio rel. to 1 Pa / noise voltage: . . . . . . . . . . .69 dB [A] / 6.0 μV [A]
Equivalent SPL: . . . . . . . . . . 25 dB [A]
Sound pressure level: . . . . . . . . . . 107 dB [SPL @ 1% THD]
Supply voltage: . . . . . . . . . . .8 - 52 V phantom power
Power consumption: . . . . . . . . . . 2.0 mA
Connection: . . . . . . . . . . .4-pin female mini XLR
Length: . . . . . . . . . . .100 mm
Head diameter: . . . . . . . . . .11 mm
