BEYERDYNAMIC Classis GM305TG

beyerdynamic Article no: 727571

Price:
$780

Description

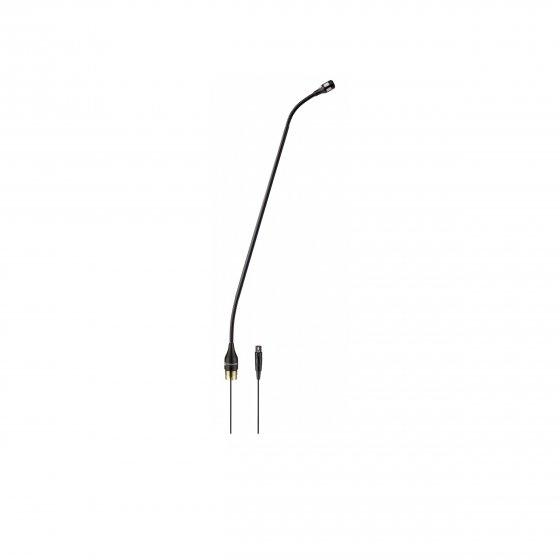

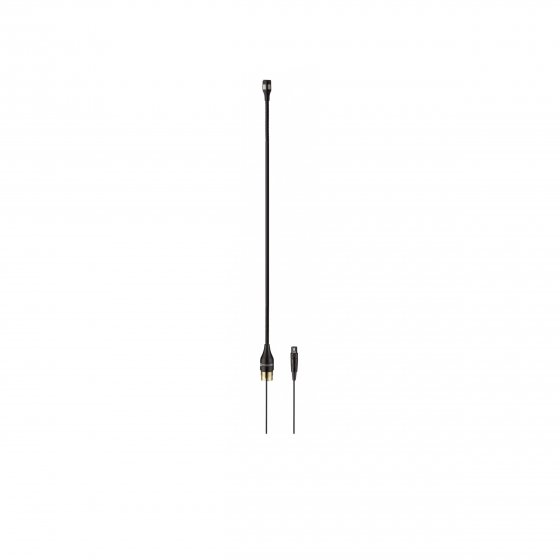

Classis GM 305TG Gooseneck Microphone

The Classis GM 305TG gooseneck mic with an extremely small microphone head meet the requirements of functional design. The thin gooseneck of 6 mm with a mat black, non-glare surface can be discretely integrated into any installation. The cardioid polar pattern of the microphones ensures maximum volume due to a high gain before feedback with excellent intelligibility of speech.

The Classis GM 305 TG is carefully handcrafted at beyerdynamic's headquarter in Heilbronn, Germany. We manufacture using only the finest mechanical and electronic components and rock solid materials.

Classis GM 305 TG 5/8" internal thread / adapter to 3/8" and external thread M18x0.75, length 500 mm [19.69"], connecting cable 2.5 m [8.2 ft] with 4-pin female mini XLR connector

Specifications:

Transducer type . . . . . . . . . . . . . . . . . Electret condenser
Operating principle . . . . . . . . . . . . . . . Pressure gradient
Polar pattern. . . . . . . . . . . . . . . . . . . . Cardioid
Frequency response . . . . . . . . . . . . . . 50 - 19,000 Hz
Open circuit voltage . . . . . . . . . . . . . . 17 mV/Pa
Nominal impedance . . . . . . . . . . . . . . < 200 Ω
Load impedance . . . . . . . . . . . . . . . . . ≥ 1 kΩ
Signal to noise ratio / noise voltage. . . 69 dB [A] / 6.0 µV [A]
Max. SPL. . . . . . . . . . . . . . . . . . . . . . . 107 dB [SPL @ 1% THD]
Equivalent SPL . . . . . . . . . . . . . . . . . . 25 dB [A]
Wiring GM 305 TG
balanced, 2.5 m [8.2 ft] long connecting cable with 4-pin female mini XLR connector for MA-PVA (TG) pre-amp with 3-pin XLR connector
Supply voltage . . . . . . . . . . Phantom power 8 - 52 V
Current consumption . . . . . . 2 mA
Dimensions Length . . . . . . . . depending on the version
Head diameter . . . . . . . . . . . . . . . . . . 13.6 mm [0.5"]
Gooseneck diameter. . . . . . . . . . . . . . 6 mm [0.2"]
Shaft diameter . . . . . . . . . . . . . . . . . . 20 mm [0.8"]
