Classis GM 303

beyerdynamic Article no: 722383

Price:
$565

Description

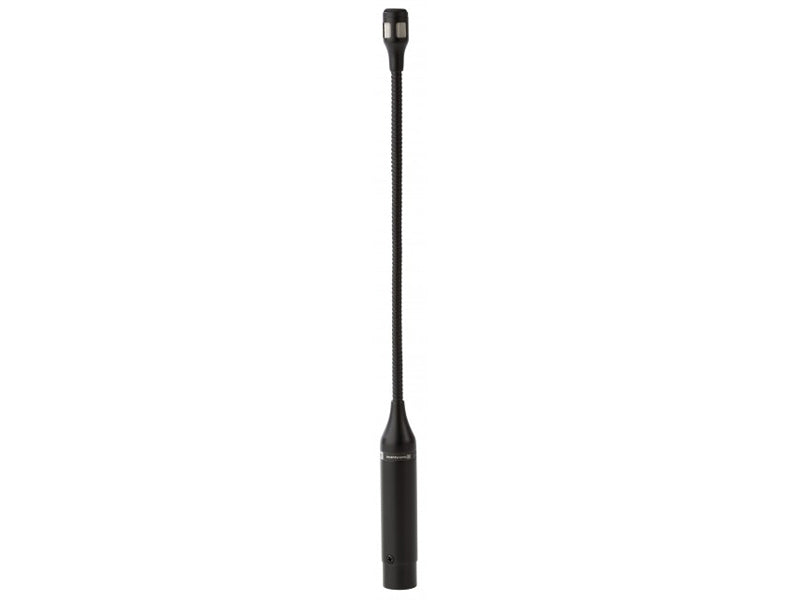

The gooseneck microphones of the Classis series with an extremely small microphone head meet the requirements of design. The thin gooseneck of 6 mm with a mat black, non-glare surface can be discretely integrated into any installation. The improved cardioid polar pattern of the microphones ensures maximum volume due to a high gain before feedback with excellent intelligibility of speech. The versatile series allows many kinds of application: the use with speaker‚ desks or altars, the use in conference systems, in studio and sound systems for mixing consoles and the use as stationary microphone in paging systems.

Features:

RFI-proof due to Scudio technology
High sensitivity
High gain before feedback
Unobtrusive due to small dimensions
Non-glare surface
Phantom power 8 - 52 volts
Length 300mm

Specifications:

Transducer type . . . . . . . . . . . . . . . . . Electret condenser
Operating principle . . . . . . . . . . . . . . . Pressure gradient
Polar pattern. . . . . . . . . . . . . . . . . . . . Cardioid
Frequency response . . . . . . . . . . . . . . 50 - 19,000 Hz
Open circuit voltage . . . . . . . . . . . . . . 17 mV/Pa
Nominal impedance . . . . . . . . . . . . . . < 200 Ω
Load impedance . . . . . . . . . . . . . . . . . ≥ 1 kΩ
Signal to noise ratio / noise voltage. . . 69 dB [A] / 6.0 µV [A]
Max. SPL. . . . . . . . . . . . . . . . . . . . . . . 107 dB [SPL @ 1% THD]
Equivalent SPL . . . . . . . . . . . . . . . . . . 25 dB [A]
Wiring . . . . . . . . . . . . . balanced with 3-pin XLR-plug
Phantom power 8 - 52 V
Current consumption. . . . . 2 mA
Dimensions Length . . . . . . . . . . . . . . . . . . . . . . . . 300mm
Head diameter . . . . . . . . . . . . . . . . . . 13.6 mm [0.5"]
Gooseneck diameter. . . . . . . . . . . . . . 6 mm [0.2"]
Shaft diameter . . . . . . . . . . . . . . . . . . 20 mm [0.8"]
