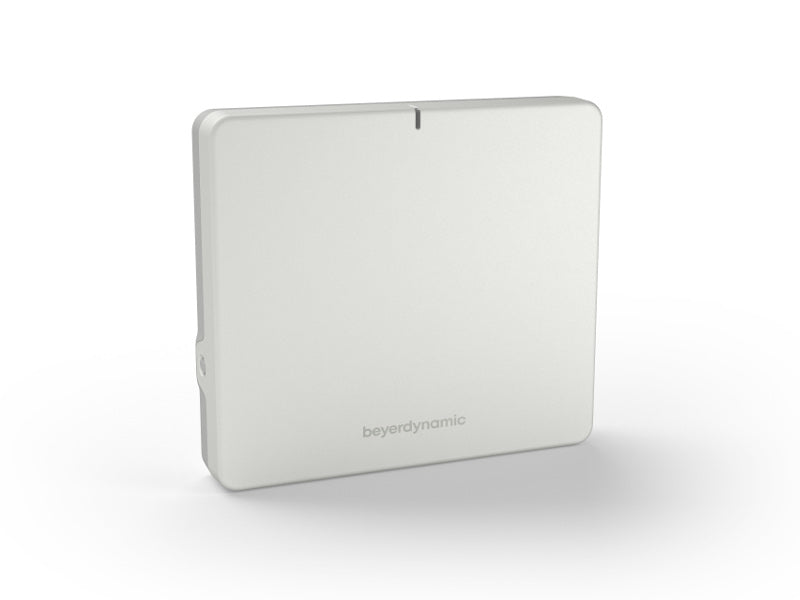

The Unite AP4 four-channel access point can be used in places where a fixed installation is needed. The analogue inputs and outputs are in Phoenix format.
The Unite AP4 also has a digital Dante interface that offers simplified control. In addition, up to eight Unite AP4 access points can be synchronised for large system requirements, thus offering up to 32 audio channels.
- 4 Channel Access Point
- Very high Transmission Range
- Dante Digital Audio Interface
- Ethernet Port (Remote Control)
- Analog In- & Outputs (Phoenix)
- Powered via PoE
- Up to 8 Access Points can be synchronized for up to 32 audio channels
- Professional Mounting Options (Stand, Wall, etc.)
Input voltage: 90 – 264 V AC, 47-63 Hz
Input current: max. 0,8 A
Output voltage: 12 V DC
Output current: 3 A
DECT RF frequeny range 1880 - 1930 MHz, depending on the country
DECT transmission range: up to 250 mW (peak), depending on the country
DECT operating range: up to 300 m outside(line of sight); the actual operating range depends upon the RF output settings, the surroundings, the signal absorption, signal reflection and signal interference
Low quality (SD): 200 Hz - 7 kHz (-3 dB)
High quality (HD): 100 Hz - 14 kHz (-3 dB)
Operating mode: 4 x Broadcast
Encryption: AES-256 bit encryption
Antenna connection: Diversity, internal
DC input: 12 V
Power consumption: 12 W
PoE input: 12 W (PoE (802.3af-2003)), 36 V - 57 V
Connections: Ethernet (RJ 45)
DC input, DC 12 V
Sync input (RJ 45)
Sync output (RJ 45)
Digital audio: Dante® (RJ 45 with PoE)
Analog audio: Phoenix® socket, balanced, contact spacing 3.5 mm, two-rowed, 6-pin, balanced connecting cable required
4-channel In, max. +6 dBu / 1.55 V eff.
4-channel Out, max. +4 dBu / 1.23 V eff.
Indicator: Status LED
Mounting for Vesa mount: 75 x 75 mm
Mounting for safety rope: available
at 90% humidity: +10 °C - +40 °C
Dimensions (L x W x H): 260 x 252 x 48 mm
Weight: 860 g
